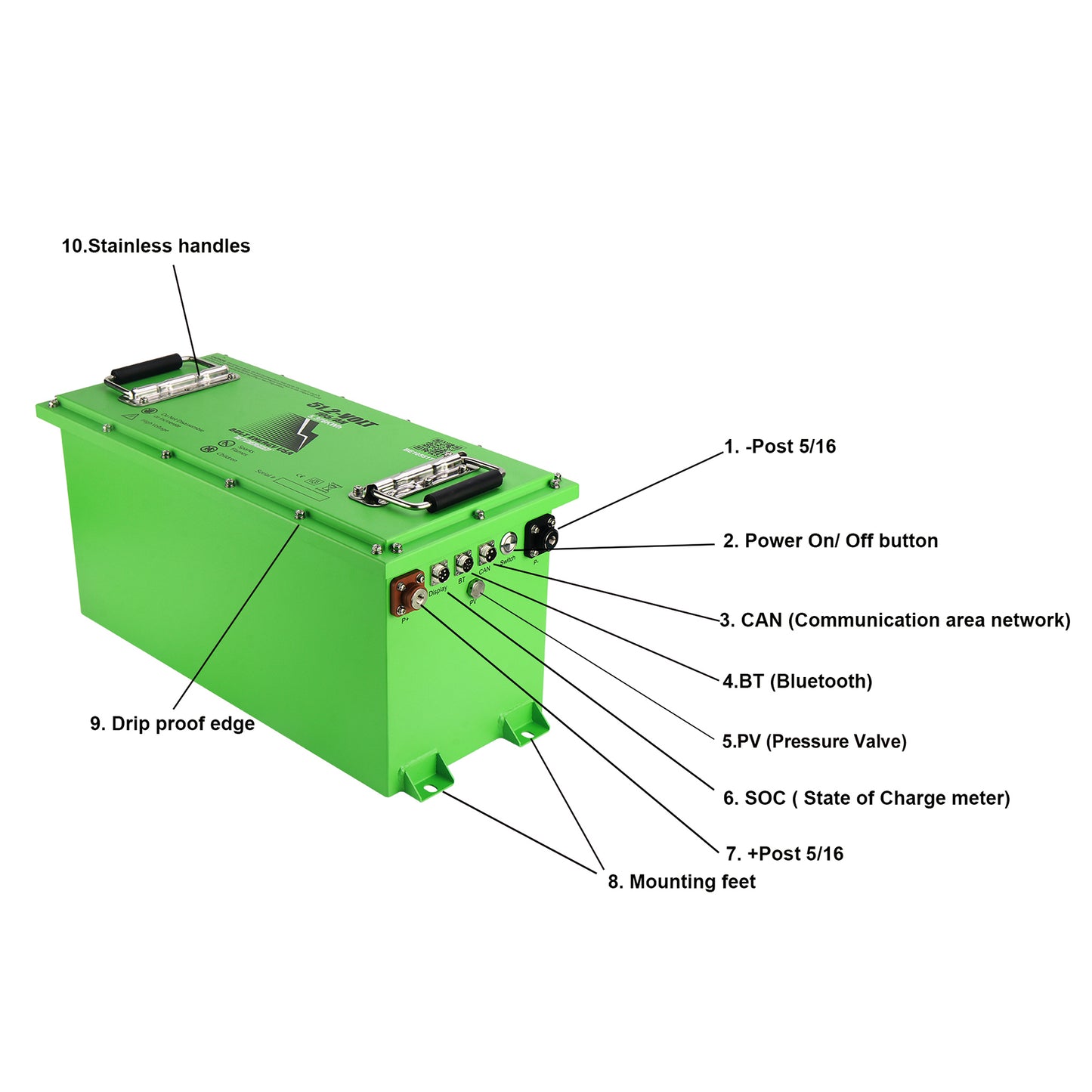

Bolt Energy 51.2V 105Ah Lithium Battery with CAN Adapter – Fits Icon i20 & i40 Golf Carts (2022+) | 12-Year Warranty

Designed specifically for Icon i20 and Icon i40 golf carts (2022 and newer), the Bolt Energy 51.2V 105Ah "Thin" LiFePO4 lithium battery delivers massive range, fast charging, and the best-in-class 12-year transferable warranty in the industry — backed by a complete Standard Kit and a CAN adapter engineered for Icon compatibility for an easy drop-in upgrade.

🏆 Best-in-Class 12-Year Transferable Warranty

Bolt Energy backs every battery with the longest transferable warranty in the golf cart lithium battery industry — 12 full years. That means:

• Coverage for 12 years against defects in materials and workmanship
• Fully transferable — the warranty moves with the battery if you sell your cart, protecting resale value and giving buyers confidence
• 6-Year free replacement
• Backed by Bolt Energy USA, a US-based company with dedicated customer support

No other lithium golf cart battery brand comes close. This is the warranty that serious golf cart owners demand.

This Lithium Kit Includes:

• 51.2V 105Ah "Thin" Battery
• Bluetooth receiver
• Smart SOC (State of charge meter)
• Owner's manual
• Six 3/8" battery ring terminal connectors
• Ten 10" tie straps
• Bolt Energy USA stickers
• Waterproof high-speed charger
• Mounting brackets, Nuts, and bolts
• AC Hardwire Port
• AC hardwire DECO cover plates
• 15ft 12 AWG Green lighted extension cord

Also includes a CAN adapter designed for Icon i20 and Icon i40 models (2022 and newer).

Electrical Specifications:

• Nominal Voltage: 51.2V
• Working Voltage: 43.2 – 58.4V
• Recommended Voltage: 48.0V – 57.0V
• Nominal Capacity: 105Ah
• Energy: 5,376Wh
• Capacity at 25A: 252 min
• Efficiency: 0.99
• Self-Discharge: <3% per Month

Discharge Specifications:

• Maximum Continuous Discharge Current: 250A
• Peak Discharge Current: 520A ± 15.6A (30S)
• BMS Discharge Current Cut-Off:
  • 260 A ± 7.8A (50S)
  • 520A ± 15.6A (30S)
• BMS Discharge Voltage Cut-Off: 40V
• Recommended Low Voltage Disconnect: 48.0V
• BMS Reconnect Voltage: 41.6V
• Discharge Temperature: -4 to 149°F (-20 to 65°C)

Charge Specifications:

• Recommended Charge Current: 5 – 52A
• Maximum Input Current: 350A
• Charge Current Cut-Off: 375A
• BMS Charge Voltage Cut-Off: 58.5V
• Reconnect Voltage: <58.5V
• Charging Temp. Range: 34°F to 140°F (0-60°C)

Mechanical Specifications:

• Dimensions (L x W x H): 20 x 8.43" x 10.65"
• Weight: 105lbs (47.63kg)
• Terminal Type: M8*1.5*25mm
• Cell Configuration: 1P16S
• Case Material: Powder Coated Steel
• Enclosure Protection: Designed with IP66 Standard
• Cell Type – Chemistry: Prismatic- LiFePO4
