Bolt Energy 51V 160AH Lithium Battery Kit for ICON i20, i40, i40L, i60L, & i80 Golf Carts

Power your ICON golf cart with the Bolt Energy 51V 160Ah LiFePO4 Standard Battery Kit — a complete drop-in lithium upgrade engineered for the ICON i20, i40, i40L, i60L, and i80. With 8,192Wh of usable energy, Bluetooth monitoring, and a 12-year transferable  warranty, this is the last battery upgrade you'll ever need.

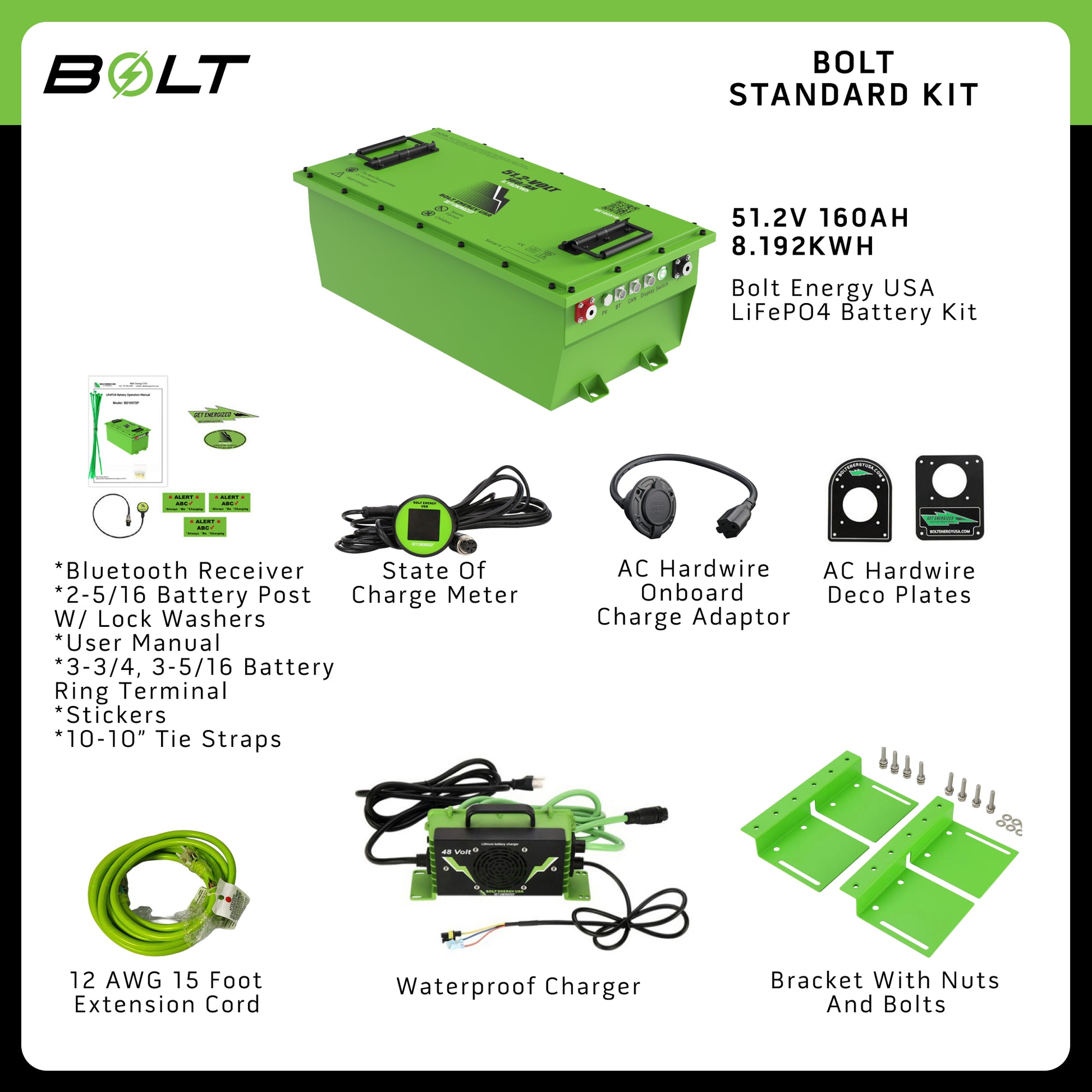

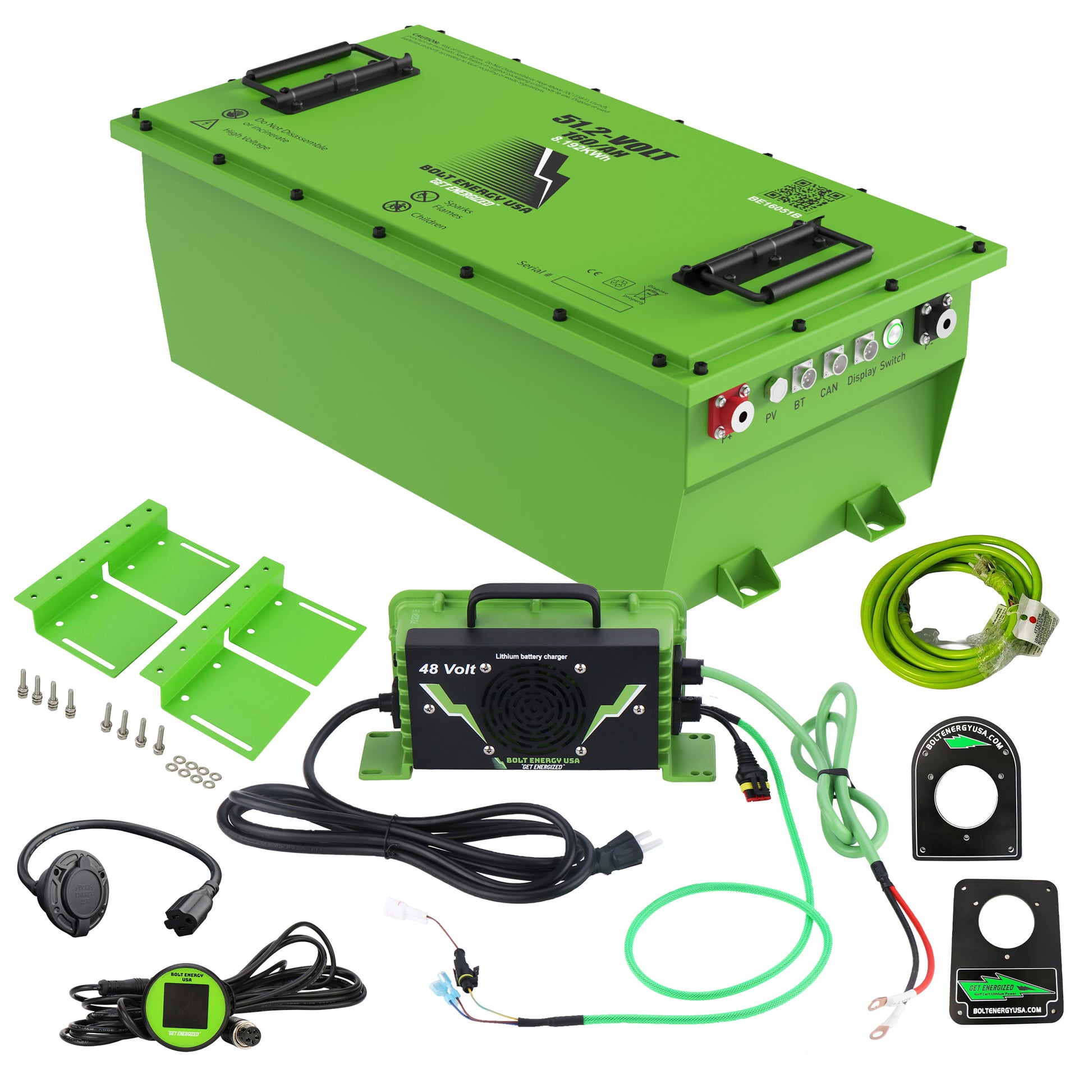

Full Kit Includes:

• 51.2V 160Ah LiFePO4 Battery
• Bluetooth receiver
• Smart SOC (State of Charge) meter
• Owner's manual
• Six 3/8" battery ring terminal connectors
• Ten 10" tie straps
• Bolt Energy USA stickers
• Waterproof high-speed charger
• Mounting brackets, nuts, and bolts
• AC Hardwire Port
• AC Hardwire DECO cover plates
• 15ft 12 AWG green lighted extension cord

Electrical Specifications:

• Nominal Voltage: 51.2V
• Working Voltage: 43.2 – 58.4V
• Recommended Voltage: 48.0V – 57.0V
• Nominal Capacity: 160Ah
• Energy: 8,192Wh
• Capacity at 25A: 384 min
• Efficiency: 0.99
• Self-Discharge: <3% per Month

Discharge Specifications:

• Maximum Continuous Discharge Current: 250A
• Peak Discharge Current: 520A ± 15.6A (30S)
• BMS Discharge Current Cut-Off: 260A ± 7.8A (50S) / 520A ± 15.6A (30S)
• BMS Discharge Voltage Cut-Off: 40V
• Recommended Low Voltage Disconnect: 48.0V
• BMS Reconnect Voltage: 41.6V
• Discharge Temperature: -4°F to 149°F (-20°C to 65°C)

Charge Specifications:

• Recommended Charge Current: 5 – 52A
• Maximum Input Current: 350A
• Charge Current Cut-Off: 375A
• BMS Charge Voltage Cut-Off: 58.5V
• Reconnect Voltage: <58.5V
• Charging Temperature Range: 34°F to 140°F (0°C to 60°C)

Mechanical Specifications:

• Dimensions (L x W x H): 29.57" x 10.17" x 9.13"
• Weight: 153 lbs (69.4 kg)
• Terminal Type: M8*1.5*25mm
• Cell Configuration: 1P16S
• Case Material: Powder Coated Steel
• Enclosure Protection: IP66 Standard
• Cell Chemistry: Prismatic LiFePO4

Communication:

• Bluetooth: Included Bluetooth receiver
• CAN: CAN port for battery diagnostics
