Club Car DS Bolt Lithium 38V 105Ah Battery Bundle - 12 Year Warranty

Transform Your Club Car DS with Premium Lithium Power

Upgrade your Club Car DS golf cart with the Bolt Lithium 38V 105Ah Battery Bundle—a complete drop-in replacement system that delivers exceptional performance, extended range, and maintenance-free operation. Engineered specifically for Club Car DS models, this premium lithium conversion kit provides everything you need for a professional installation.

Why Choose Bolt Lithium for Your Club Car DS?

Unmatched Performance & Range: With 4.032kWh of energy capacity and 105Ah rating, enjoy significantly longer run times compared to traditional lead-acid batteries. The advanced LiFePO4 chemistry delivers consistent power output from 100% down to 20% charge, ensuring your cart maintains peak performance throughout your entire round.

Lightweight Design: At just 77 lbs, this battery weighs approximately 60% less than comparable lead-acid battery packs, improving acceleration, hill-climbing ability, and overall cart handling while reducing wear on suspension components.

Rapid Charging: The included waterproof high-speed charger fully recharges your battery in 3-4 hours—up to 5x faster than lead-acid systems. Smart charging technology optimizes battery health and longevity with every charge cycle.

12-Year Transferable Warranty — Unmatched in the Industry: No other golf cart battery manufacturer comes close. Bolt Energy’s 12-year transferable warranty covers manufacturing defects, cell failures, and BMS malfunctions. It transfers to the next owner if you sell your cart, protecting your investment and boosting resale value.

Smart Monitoring Technology: The integrated Bluetooth receiver and Smart SOC (State of Charge) meter let you monitor battery health, charge level, voltage, current, and temperature in real-time via the Bolt Energy mobile app.

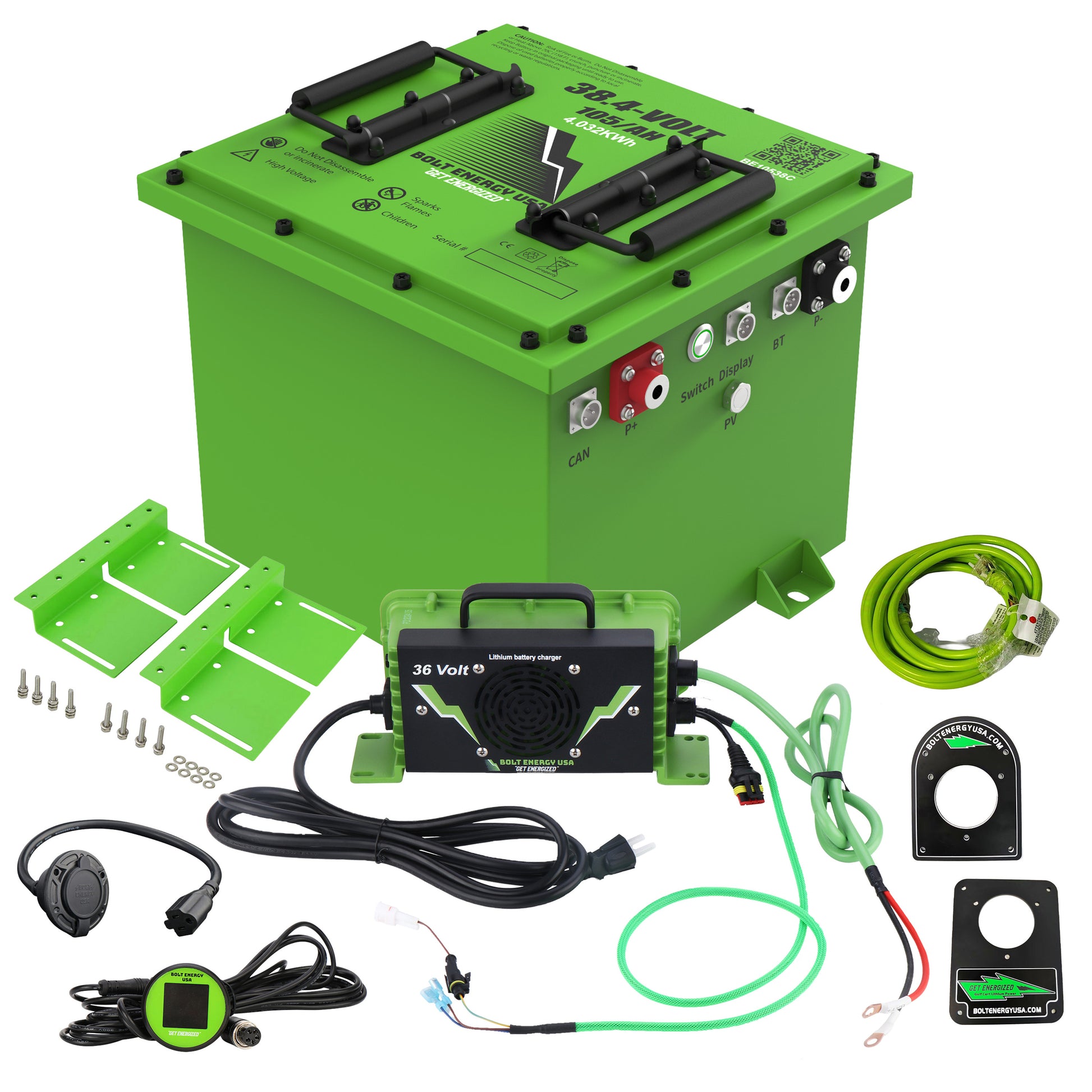

Complete Standard Kit Includes:

• 38.4V 105Ah Lithium Battery (LiFePO4)
• Waterproof High-Speed Charger
• Bluetooth Receiver for Mobile Monitoring
• Smart SOC (State of Charge) Meter
• Mounting Brackets, Nuts, and Bolts
• Six 3/8" Battery Ring Terminal Connectors
• AC Hardwire Port & DECO Cover Plates
• 15ft 12 AWG Green Lighted Extension Cord
• Ten 10" Tie Straps
• Owner’s Manual
• Bolt Energy USA Stickers

Technical Specifications

Electrical:

• Nominal Voltage: 38.4V
• Working Voltage Range: 32.4V – 43.8V
• Nominal Capacity: 105Ah
• Total Energy: 4.032kWh
• Runtime at 25A: 252 minutes
• Efficiency: 99%
• Self-Discharge: Less than 3% per month

Performance:

• Maximum Continuous Discharge: 250A
• Peak Discharge Current: 520A ± 15.6A (30 seconds)
• BMS Discharge Cut-Off: 260A ± 7.8A (50s) / 520A ± 15.6A (30s)
• Low Voltage Disconnect: 36.0V (recommended)
• Operating Temperature: -4°F to 149°F (-20°C to 65°C)

Charging:

• Recommended Charge Current: 5A – 52A
• Maximum Input Current: 350A
• Charge Voltage Cut-Off: 43.8V
• Charging Temperature Range: 34°F to 140°F (0°C to 60°C)
• Full Charge Time: 3-4 hours

Physical:

• Dimensions: 11.14" L x 10.58" W x 10.67" H
• Weight: 77.27 lbs (35.05 kg)
• Terminal Type: M8 x 1.5 x 25mm
• Cell Configuration: 1P16S Prismatic LiFePO4
• Case Material: Powder Coated Steel
• Enclosure Protection: IP66 Standard (dust-tight, water-resistant)

Club Car DS Compatibility

This 38V system is designed for Club Car DS models that originally came equipped with 36V electrical systems. Verify your cart’s voltage before ordering. Compatible with both gas and electric Club Car DS models when converting to electric drive.

Installation Overview

Professional installation recommended. The complete kit includes all necessary mounting hardware and connectors for a clean, factory-quality installation. Average installation time: 2-3 hours for experienced technicians. Detailed installation instructions included with owner’s manual.

Installation Steps:

1. Disconnect and remove existing battery system
2. Install mounting brackets in battery compartment
3. Secure Bolt Lithium battery using provided hardware
4. Connect battery terminals using included ring connectors
5. Mount Smart SOC meter in accessible location
6. Install AC hardwire port and cover plates
7. Connect Bluetooth receiver
8. Perform system test and calibration

Maintenance & Care

Unlike lead-acid batteries, Bolt Lithium batteries require virtually no maintenance. No watering, no corrosion cleaning, no equalization charges. Simply charge after use and store in a climate-controlled environment when not in use for extended periods. For optimal longevity, maintain charge between 20-80% for daily use.

Frequently Asked Questions

Q: How much longer will this battery last compared to lead-acid?
A: Bolt Lithium batteries are rated for 3,500+ charge cycles compared to 500-800 for lead-acid, providing 4-5x longer service life. With proper care, expect 8-10 years of reliable performance.

Q: Can I use my existing charger?
A: No, lithium batteries require a lithium-specific charger. This kit includes a waterproof high-speed charger optimized for LiFePO4 chemistry. Using a lead-acid charger can damage the battery and void the warranty.

Q: Will this fit in my standard battery compartment?
A: Yes, the compact design fits easily in the Club Car DS battery compartment with room to spare. The included mounting brackets ensure secure installation.

Q: How do I monitor the battery charge level?
A: The kit includes both a Smart SOC meter for at-a-glance monitoring and Bluetooth connectivity for detailed diagnostics via the Bolt Energy mobile app on your smartphone.

Q: What makes the 12-year warranty transferable — and why does it matter?
A: Bolt Energy’s 12-year warranty is fully transferable to a subsequent owner if you sell your golf cart. No other battery brand in the industry offers this length of coverage, let alone transferability. It’s a genuine differentiator that protects your investment and increases your cart’s resale value.

Q: What’s covered under the 12-year warranty?
A: The warranty covers manufacturing defects, cell failures, and BMS malfunctions. Normal wear and damage from improper installation, use, or charging are not covered. See warranty documentation for complete details.

Q: Can I charge in cold weather?
A: The battery can discharge in temperatures as low as -4°F, but charging should only occur between 34°F and 140°F. The BMS will prevent charging outside this range to protect battery health.

About Bolt Energy USA

Bolt Energy is a leading manufacturer of premium lithium battery solutions for golf carts and light electric vehicles. With a commitment to innovation, quality, and customer satisfaction, Bolt Energy delivers cutting-edge power systems backed by the industry’s only 12-year transferable warranty and exceptional customer support.

Upgrade to lithium power today and experience the Bolt Energy difference — more range, faster charging, and a warranty no one else can match.
