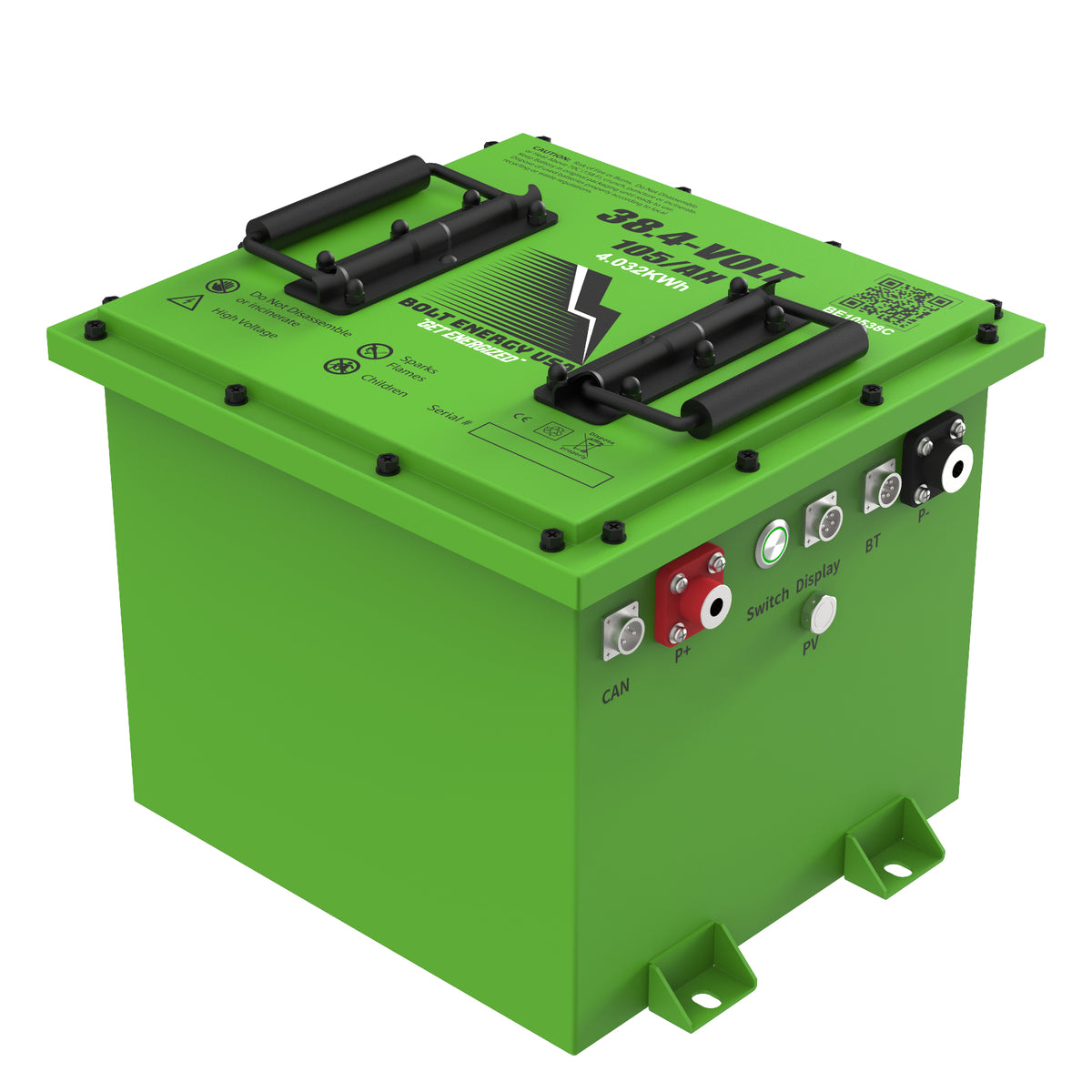

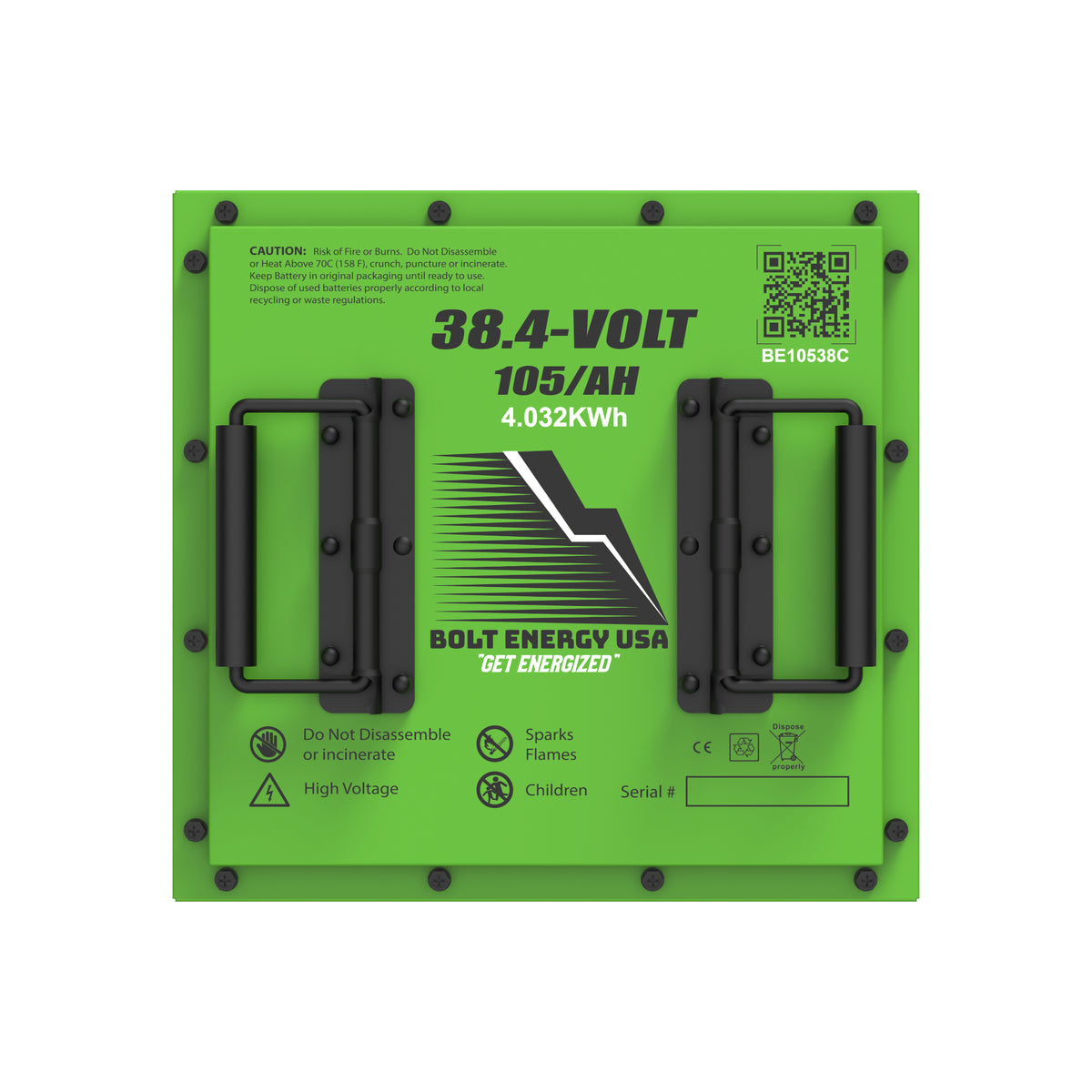

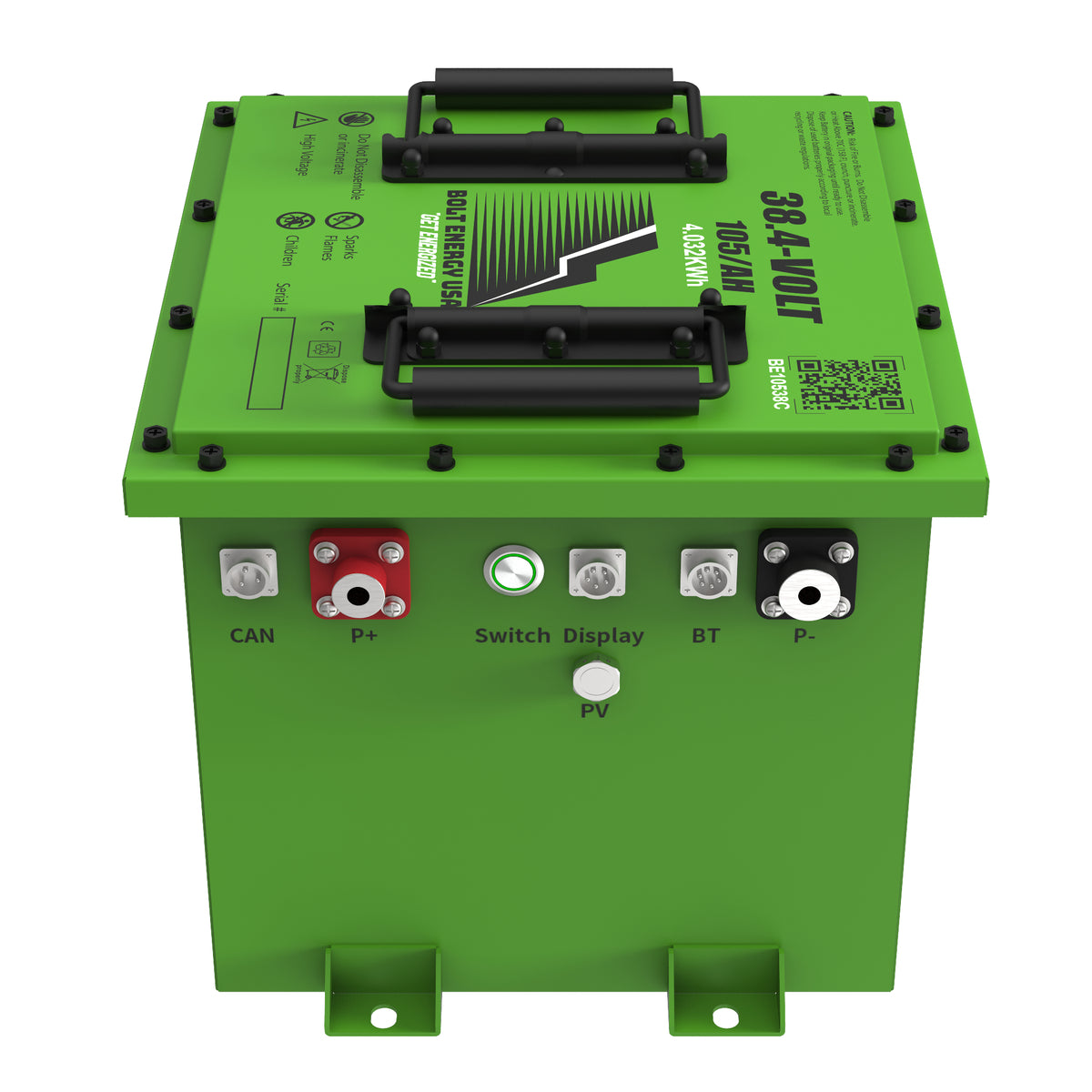

Club Car DS Bolt Lithium 38V 105Ah Battery Kit - 12 Year Warranty

Professional-Grade Lithium Power for Your Club Car DS

Upgrade your Club Car DS with the Bolt Lithium 38V 105Ah Battery Kit— Also you get a Free Upgrade to a heated battery. Protection is the number 1 goal here at the Gurus!  When you are cold so is your battery.  So with this purchase you will receive a 12 year transferable warranty and now a heated battery!

12-Year Transferable Warranty — Unmatched in the Industry: No other golf cart battery manufacturer comes close. Bolt Energy’s 12-year transferable warranty covers manufacturing defects, cell failures, and BMS malfunctions. It transfers to the next owner if you sell your cart, protecting your investment and boosting resale value.

Smart Monitoring: Monitor battery health, charge level, voltage, current, and temperature in real-time via the Bolt Energy mobile app with integrated Bluetooth and Smart SOC meter.

Choose your install kit

Complete Standard Kit Includes:

• 38.4V 105Ah Lithium Battery (LiFePO4) -Heated
• Waterproof High-Speed Charger
• Bluetooth Receiver for Mobile Monitoring
• Smart SOC (State of Charge) Meter
• Mounting Brackets, Nuts, and Bolts
• Six 3/8" Battery Ring Terminal Connectors
• AC Hardwire Port & DECO Cover Plates
• 15ft 12 AWG Green Lighted Extension Cord
• Ten 10" Tie Straps
• Owner’s Manual
• Bolt Energy USA Stickers

or

Complete Professional Kit Includes:

• 38.4V 105Ah Lithium Battery (LiFePO4)- Heated
• Waterproof High-Speed Charger
• Bluetooth Receiver for Mobile Monitoring
• Smart SOC (State of Charge) Meter
• Mounting Brackets, Nuts, and Bolts
• Six 3/8" Battery Ring Terminal Connectors
• AC Hardwire Port & DECO Cover Plates
• 15ft 12 AWG Green Lighted Extension Cord
• Two 40" 2AWG Premium Installation Cables (Pro Kit Exclusive)
• 400A Heavy-Duty Solenoid (Pro Kit Exclusive)
• 30-Amp Reducer (Pro Kit Exclusive)
• Lead Battery Removal Strap (Pro Kit Exclusive)
• Ten 10" Tie Straps
• Owner’s Manual
• Bolt Energy USA Stickers

Technical Specifications

Electrical:

• Nominal Voltage: 38.4V
• Working Voltage Range: 32.4V – 43.8V
• Nominal Capacity: 105Ah
• Total Energy: 4.032kWh
• Runtime at 25A: 252 minutes
• Efficiency: 99%
• Self-Discharge: Less than 3% per month

Performance:

• Maximum Continuous Discharge: 250A
• Peak Discharge Current: 520A ± 15.6A (30 seconds)
• BMS Discharge Cut-Off: 260A ± 7.8A (50s) / 520A ± 15.6A (30s)
• Low Voltage Disconnect: 36.0V (recommended)
• Operating Temperature: -4°F to 149°F (-20°C to 65°C)

Charging:

• Recommended Charge Current: 5A – 52A
• Maximum Input Current: 350A
• Charge Voltage Cut-Off: 43.8V
• Charging Temperature Range: 34°F to 140°F (0°C to 60°C)
• Full Charge Time: 3-4 hours

Physical:

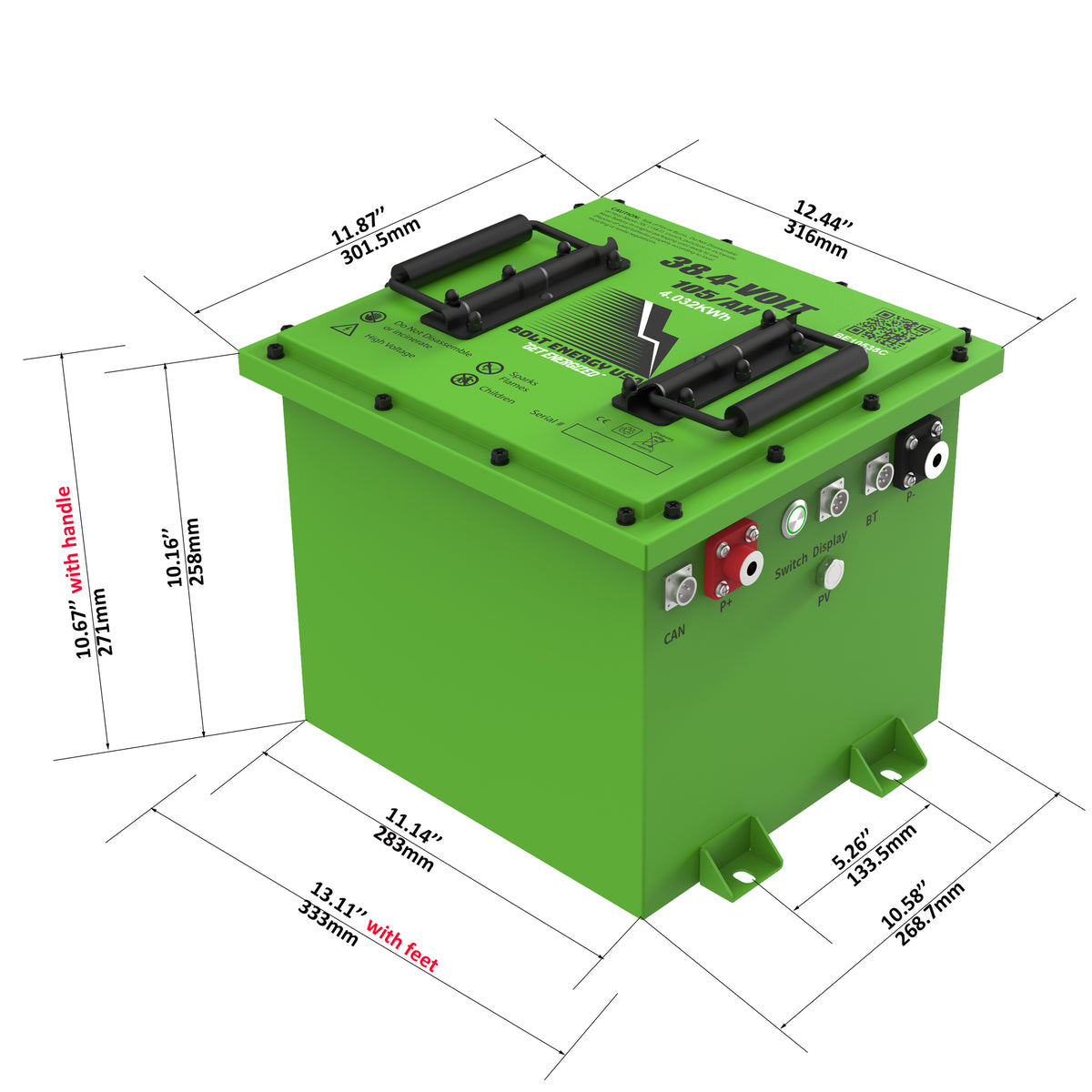

• Dimensions: 11.14" L x 10.58" W x 10.67" H
• Weight: 77.27 lbs (35.05 kg)
• Terminal Type: M8 x 1.5 x 25mm
• Cell Configuration: 1P16S Prismatic LiFePO4
• Case Material: Powder Coated Steel
• Enclosure Protection: IP66 Standard

Club Car DS Compatibility

Designed for Club Car DS models originally equipped with 36V electrical systems. Verify your cart’s voltage before ordering.

Professional Installation

Average installation time: 2-3 hours. All hardware included. Detailed instructions in owner’s manual.

1. Use removal strap to safely extract old lead-acid batteries
2. Clean compartment and install mounting brackets
3. Secure Bolt Lithium battery with provided hardware
4. Install 400A solenoid
5. Connect terminals using 2AWG cables and ring connectors
6. Install 30-amp reducer
7. Mount Smart SOC meter
8. Install AC hardwire port and cover plates
9. Connect Bluetooth receiver
10. Perform system test and calibration

Pro Kit Advantages

2AWG Cables: Reduce voltage drop and heat, maximizing power delivery to your motor.

400A Solenoid: Handles high current loads with superior reliability and thermal management.

30-Amp Reducer: Protects your electrical system during charging and high-demand situations.

Battery Removal Strap: Safe, easy lead-acid battery extraction — no back strain, no cart damage.

Standard Kit Advantage

Lower cost kit, which only includes essentials for a stock golf cart.

Maintenance & Care

No watering, no corrosion cleaning, no equalization charges. Simply charge after use. For optimal longevity, maintain charge between 20-80% for daily use.

Frequently Asked Questions

Q: What’s the difference between Standard and Pro Kit?
A: The Pro Kit adds premium 2AWG cables, a 400A solenoid, 30-amp reducer, and lead battery removal strap for a superior, easier installation.

Q: What makes the 12-year warranty transferable — and why does it matter?
A: Bolt Energy’s 12-year warranty transfers fully to the next owner if you sell your cart. No other battery brand offers this length of coverage or transferability. It protects your investment and increases resale value. Backed by a seller who has been in business since 2008 and a manufacture who as been in business since the 1960s!

Q: How much longer will this last vs. lead-acid?
A: 3,500+ charge cycles vs. 500-800 for lead-acid — 4-5x longer service life. Expect 12+ years with proper care.

Q: Can I use my existing charger?
A: No. This kit includes a lithium-specific waterproof charger. Using a lead-acid charger will damage the battery and void the warranty.

Q: What’s covered under the 12-year warranty?
A: Manufacturing defects, cell failures, and BMS malfunctions. Damage from improper installation or charging is not covered.

About Bolt Energy USA

Bolt Energy delivers cutting-edge lithium power systems for golf carts and light electric vehicles, backed by the industry’s only 12-year transferable warranty and exceptional customer support.

Upgrade to professional-grade lithium power today — superior performance, faster charging, and a warranty no one else can match.
