Eco Battery

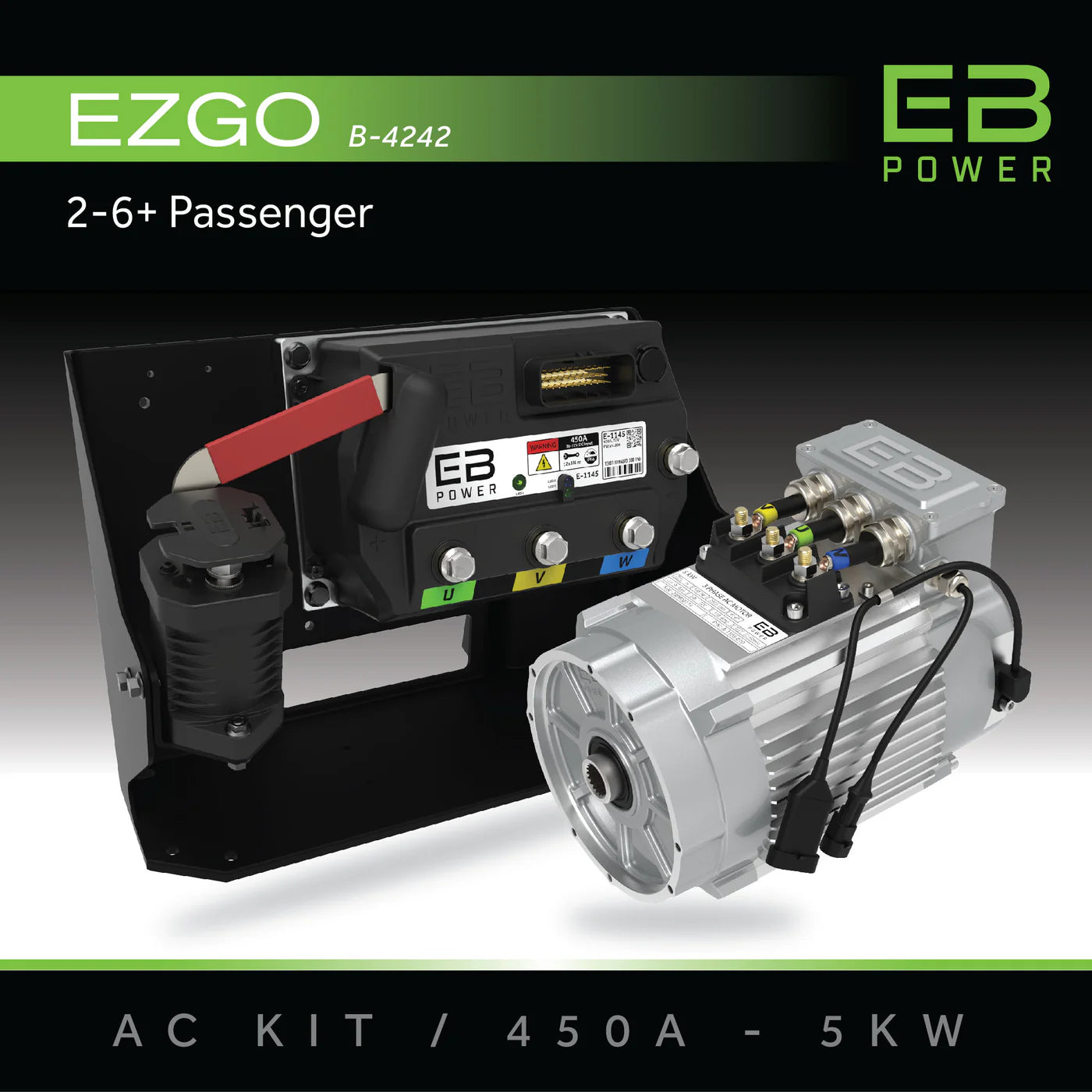

Eco Battery Ac Bundle Ezgo txt 450a 5kw
Eco Battery Ac Bundle Ezgo txt 450a 5kw
Couldn't load pickup availability
Fits an EZGO TXT WITHOUT removing the rear shock.
This kit will work on all EZGO's except marathon and RXV. Works on EZGO TXT, TXT48, EZGO Series, EZGO PDS, EZGO medalist.
This Bundle Contains:

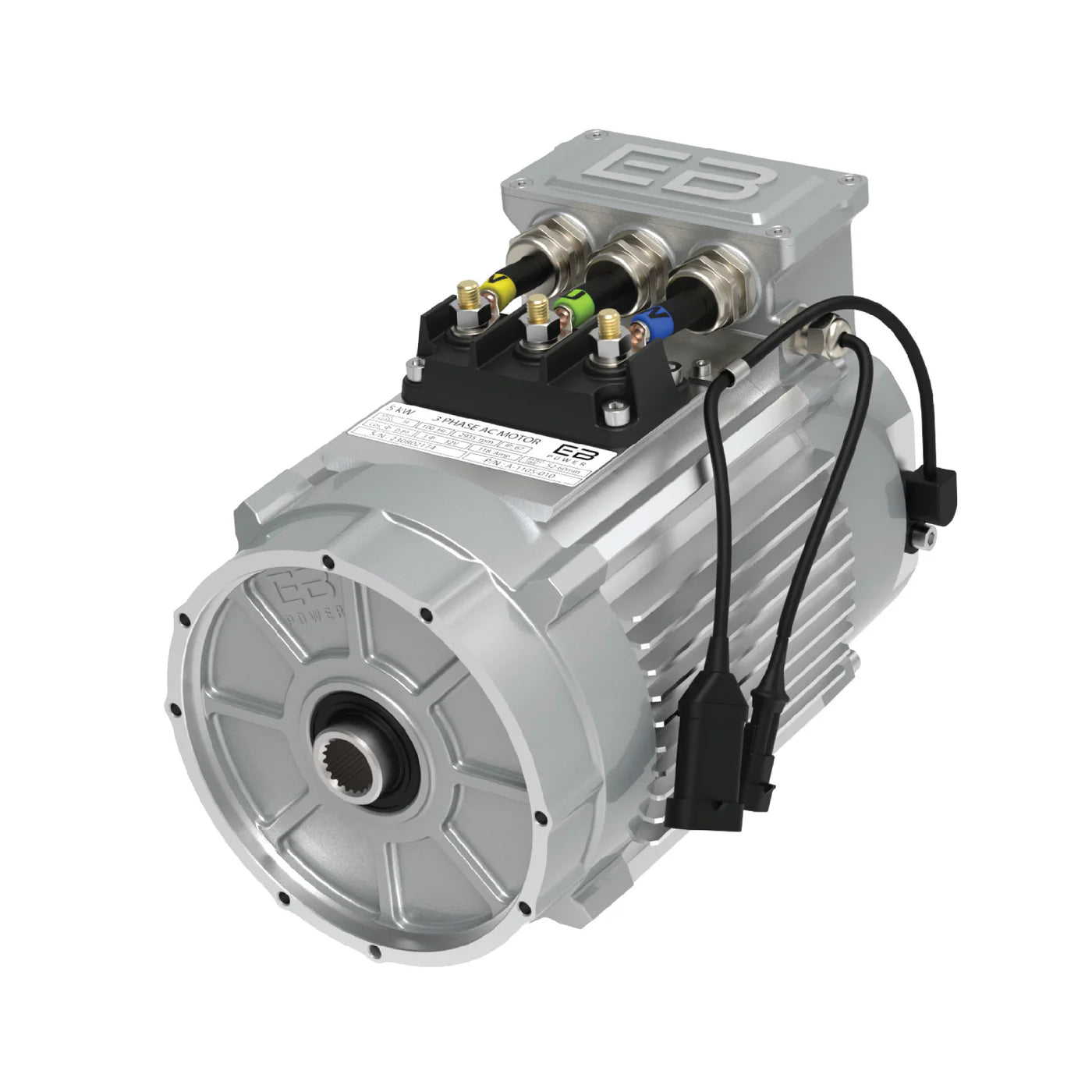

A-1105-019 EB Power 5kW Motor / 19 Spline
Required Hardware
A-4025 EB Power AC Install Kit / EZGO
A-4027 EB Power AC Accessory Pack / EZGO

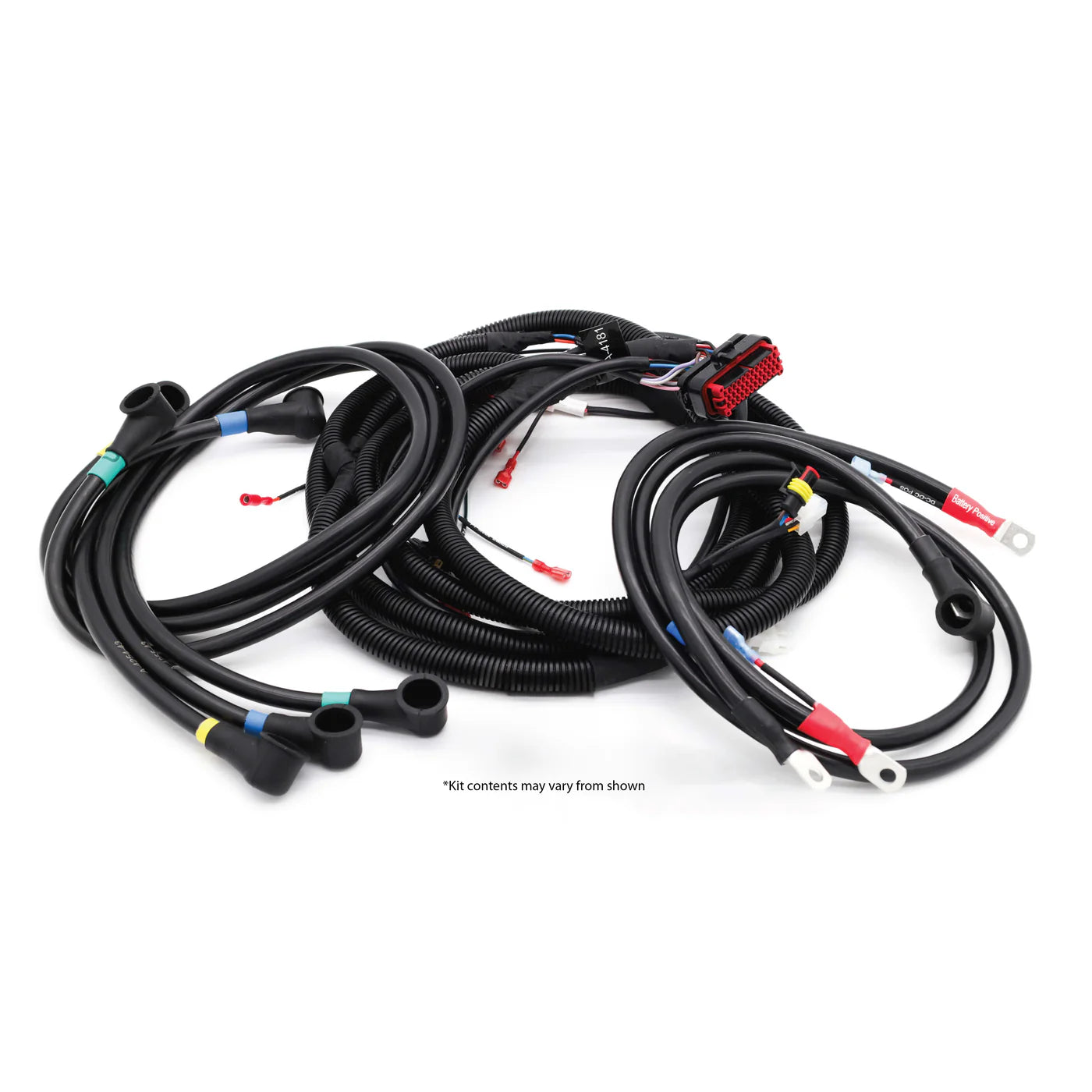

A-4179 EB Power AC Harness / EZGO / 6 Passenger
A-4241 EB Power 2 AWG Battery Cable Set / 46in Blk 53in Red
A-4261 EB Power 2 AWG Phase Cable Set / 43in
Both Gen 2 and Gen 3 Eco Batteries are compatible with the Eco Power AC kits with the Gen 3 offering the greatest level of performance and customization.
The Eco Battery AC kits are a one-stop shop. These bundles are optimized per cart and include every part needed for a complete AC swap.
These kits include a NEW complete wiring harness. This kit will come with adapters to work with ALL EZGO ITS throttles.
|
|
600A |
450A |
350A |
|
Nominal Voltage |
36-90V |
36-90V |
36-90V |
|
Power Connections |
(6) M8X1.25 |
(6) M8X1.25 |
(6) M8X1.25 |
|
Connection Torque specs |
8 ft/lbs |
8 ft/lbs |
8 ft/lbs |
|
Weight |
7.2 lbs |
5.7 lbs |
4.8 lbs |
|
IP Rating |
IP66 |
IP66 |
IP66 |
|
Storage Ambient Temp |
-40-85 Celsius |
-40-85 Celsius |
-40-85 Celsius |
|
Operating Ambient Temp |
-40-55 Celsius |
-40-55 Celsius |
-40-55 Celsius |
|
Can Communication |
Yes |
Yes |
Yes |
|
WiFi Communication via app |
Yes |
Yes |
Yes |
|
2 Minute Max Current |
600A |
450A |
350A |
|
60 Minute Rate Current |
240A |
180A |
140A |
|
Sensor |
Quadrature Encoder |
Quadrature Encoder |
Quadrature Encoder |
|
Efficiency |
98% |
98% |
98% |
|
Cooling |
Flat Heatsink |
Flat Heatsink |
Flat Heatsink |
