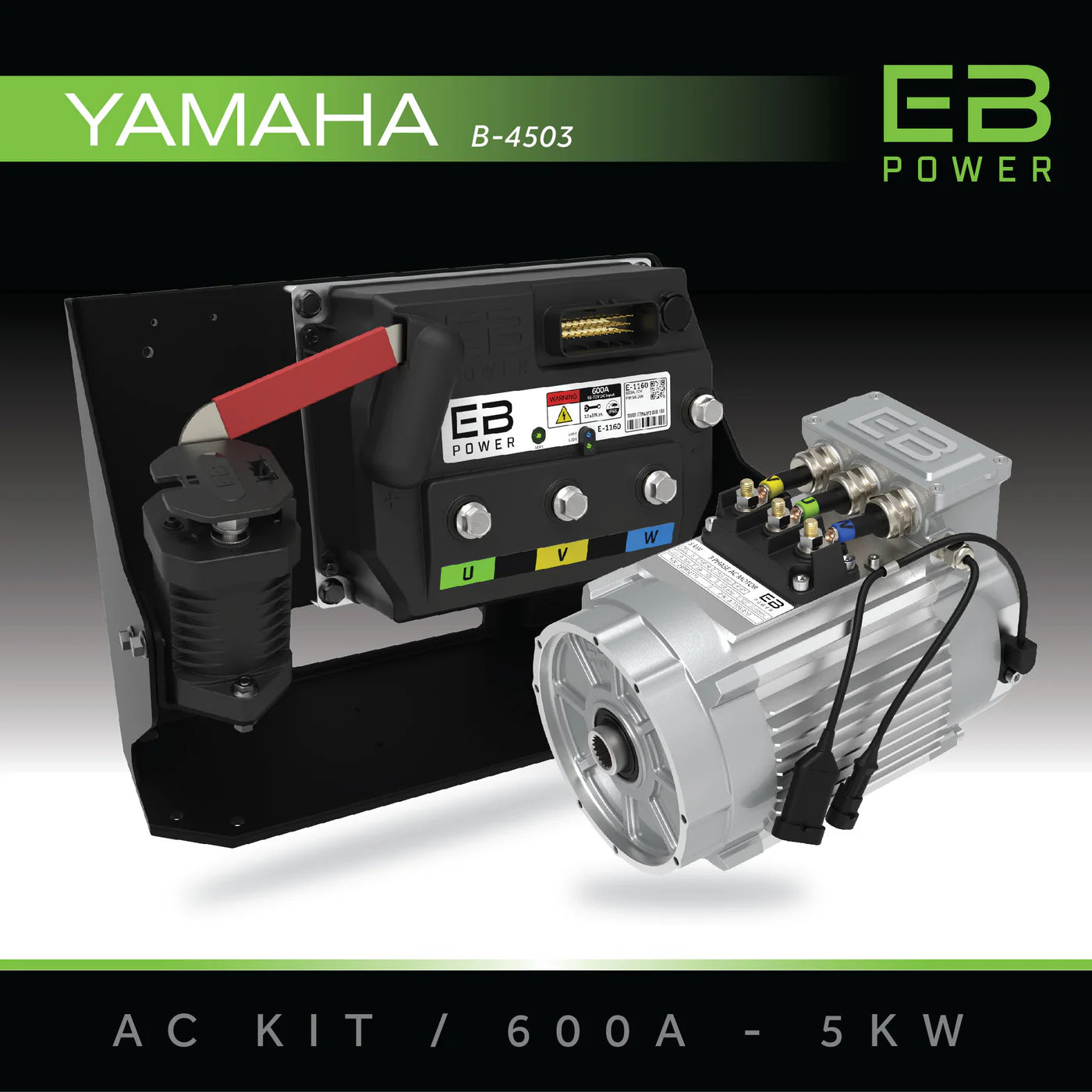

Eco Battery Ac Bundle Yamaha g29 Drive2 600a 5kw
Eco Battery Ac Bundle Yamaha g29 Drive2 600a 5kw
Couldn't load pickup availability
Both Gen 2 and Gen 3 Eco Batteries are compatible with the Eco Power AC kits with the Gen 3 offering the greatest level of performance and customization.
The Eco Battery AC kits are a one-stop shop. These bundles are optimized per cart and include every part needed for a complete AC swap.

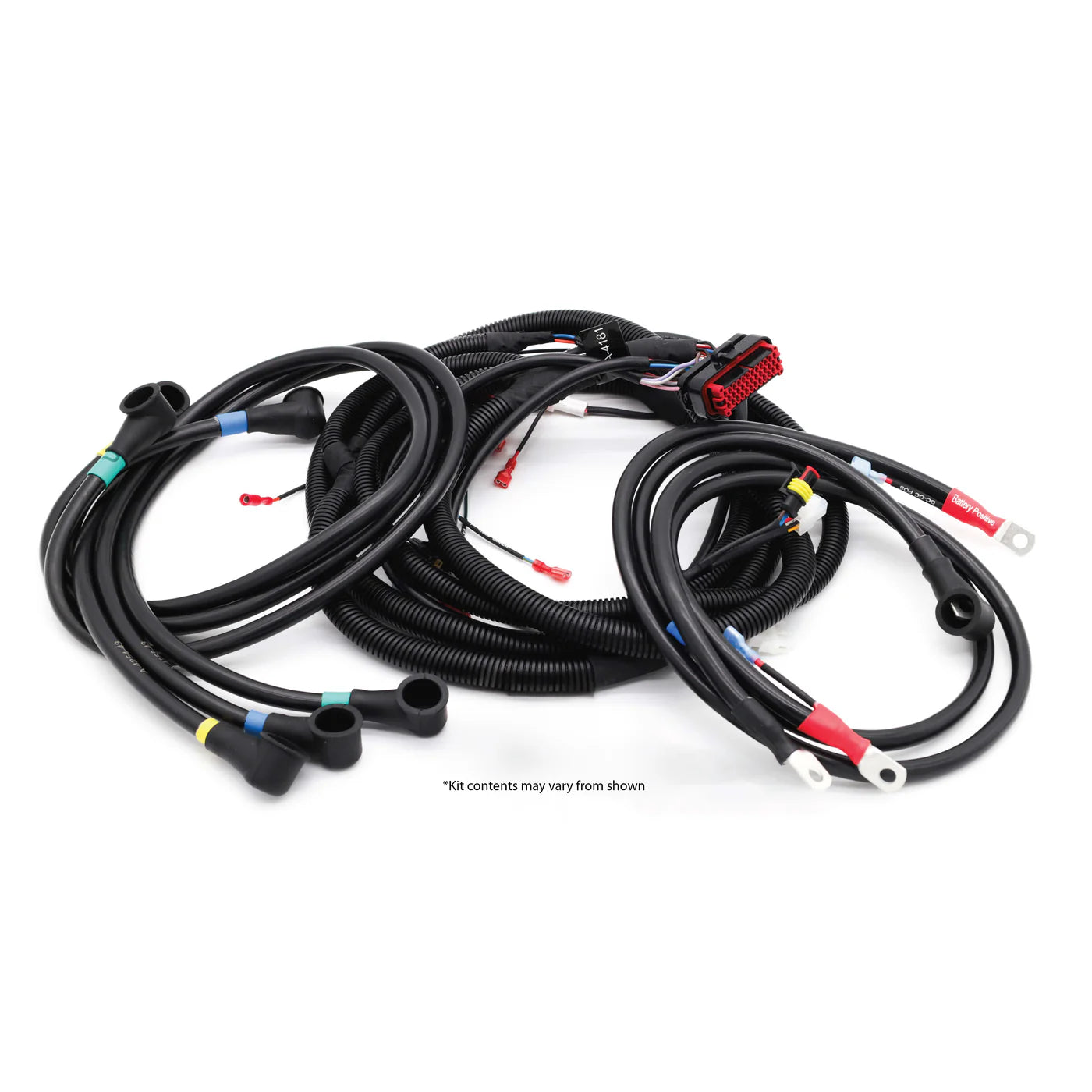

These kits include a NEW complete wiring harness. This kit will come with adapters to work with ALL MCOR throttles.
|
|
600A |
450A |
350A |
|
Nominal Voltage |
36-90V |
36-90V |
36-90V |
|
Power Connections |
(6) M8X1.25 |
(6) M8X1.25 |
(6) M8X1.25 |
|
Connection Torque specs |
8 ft/lbs |
8 ft/lbs |
8 ft/lbs |
|
Weight |
7.2 lbs |
5.7 lbs |
4.8 lbs |
|
IP Rating |
IP66 |
IP66 |
IP66 |
|
Storage Ambient Temp |
-40-85 Celsius |
-40-85 Celsius |
-40-85 Celsius |
|
Operating Ambient Temp |
-40-55 Celsius |
-40-55 Celsius |
-40-55 Celsius |
|
Can Communication |
Yes |
Yes |
Yes |
|
WiFi Communication via app |
Yes |
Yes |
Yes |
|
2 Minute Max Current |
600A |
450A |
350A |
|
60 Minute Rate Current |
240A |
180A |
140A |
|
Sensor |
Quadrature Encoder |
Quadrature Encoder |
Quadrature Encoder |
|
Efficiency |
98% |
98% |
98% |
|
Cooling |
Flat Heatsink |
Flat Heatsink |
Flat Heatsink |
