Evolution Lithium Replacement – Bolt Energy 51.2V 105Ah LiFePO4

Upgrade your Evolution cart with Factory lithium & Touch Screen to the most powerful drop-in lithium battery available. The Bolt Energy 51.2V 105 ah LiFePO4 battery delivers massive range, zero maintenance, and a 12-year transferable warranty — all in a plug-and-play package built specifically for the Evolution carts with a factory screen (9 pin harness).

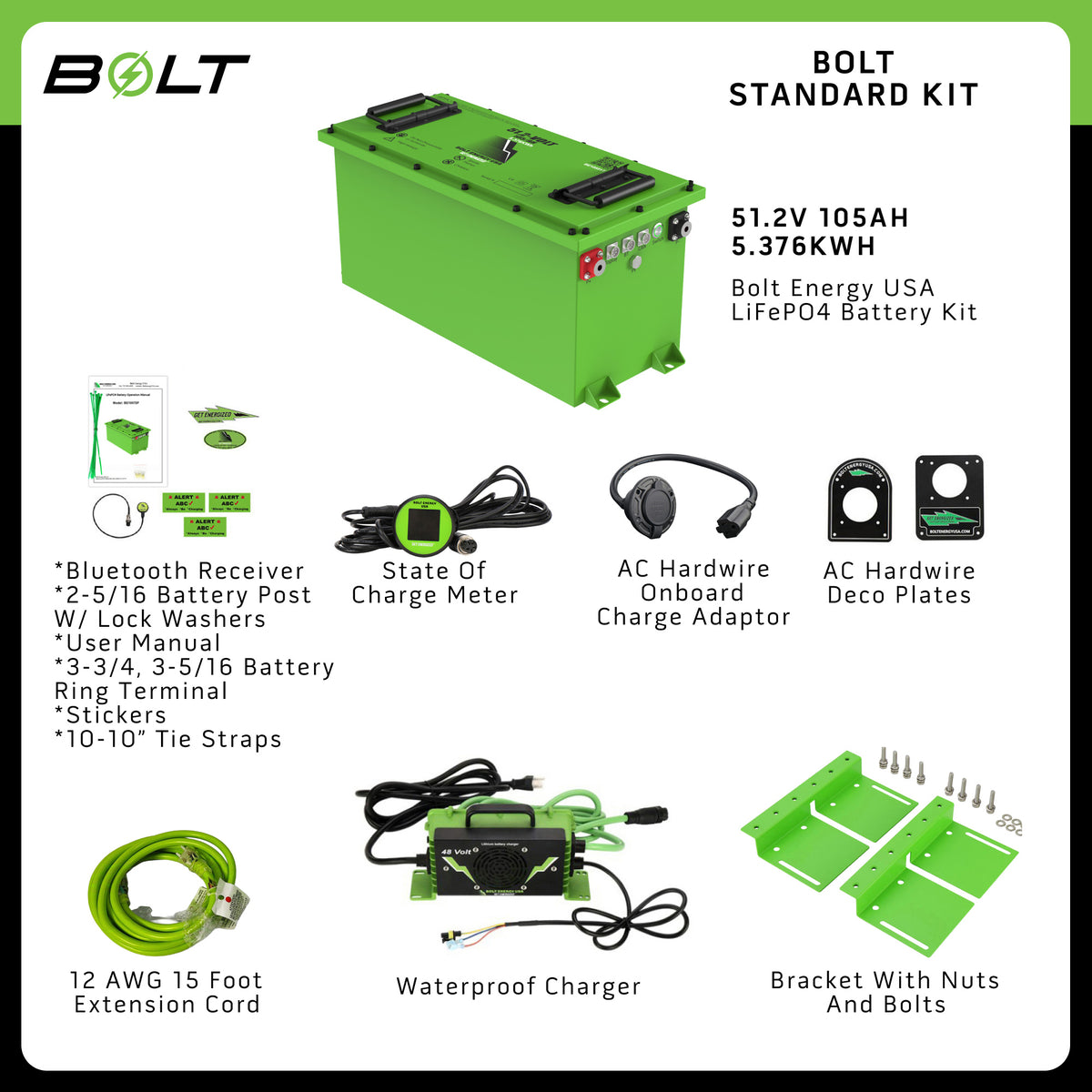

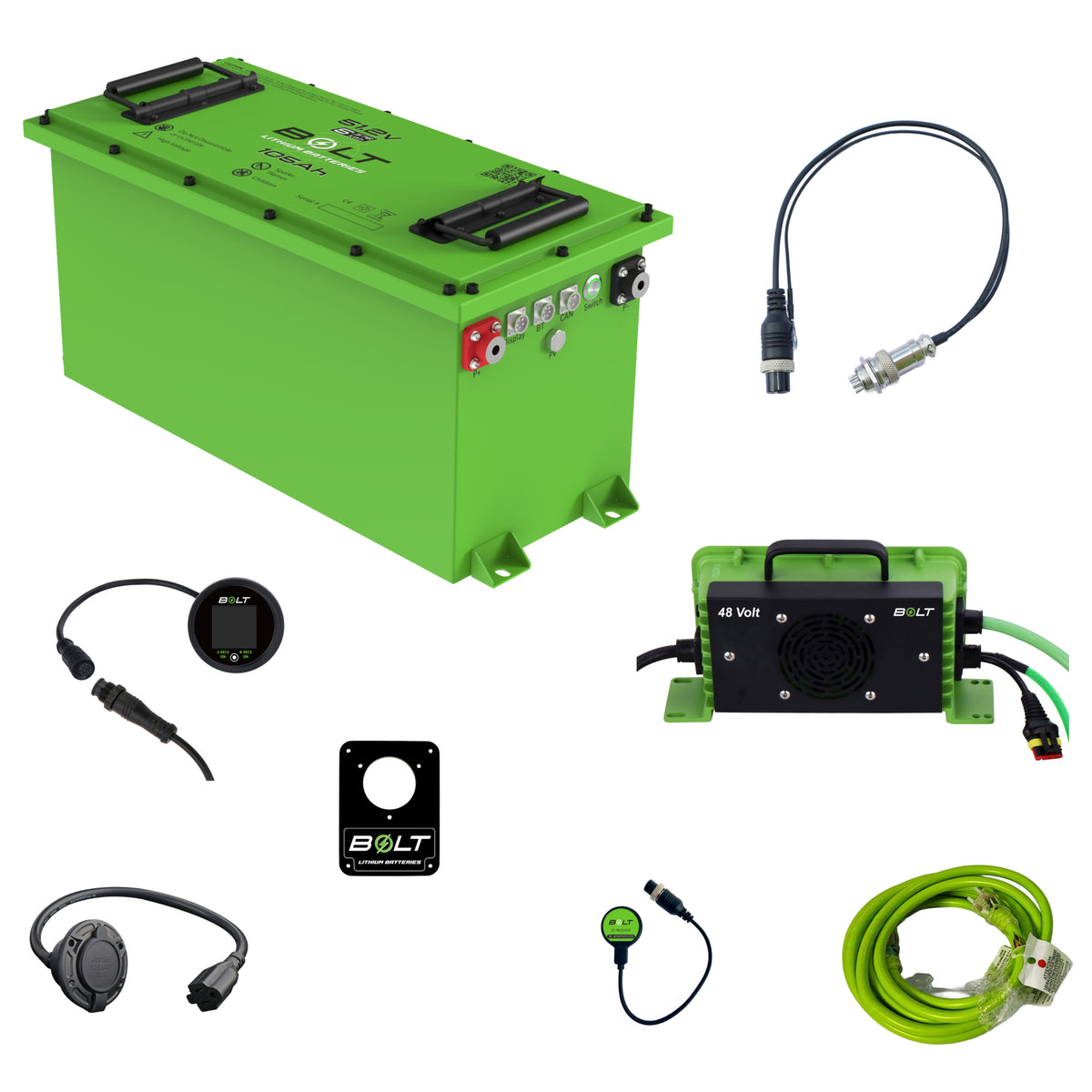

🔋 What's in the Kit

• 51.2V 105ah LiFePO4 Battery
• Bluetooth receiver (monitor from your phone)
• Smart SOC state-of-charge meter
• Owner's manual
• Six 3/8" battery ring terminal connectors

• Bolt Energy USA stickers
• Waterproof high-speed charger
• Mounting brackets, nuts, and bolts
• AC Hardwire Port + DECO cover plates

• 15ft 12 AWG green lighted extension cord

⚡ Electrical Specifications

• Nominal Voltage: 51.2V
• Working Voltage: 43.2 – 58.4V
• Recommended Voltage: 48.0V – 57.0V
• Nominal Capacity: 105ah
• Energy: 5,376Wh
• Capacity at 25A: 403 min
• Efficiency: 0.99
• Self-Discharge: <3% per month

🔽 Discharge Specifications

• Max Continuous Discharge: 250A
• Peak Discharge: 520A ± 15.6A (30S)
• BMS Cut-Off: 260A ± 7.8A (50S) / 520A ± 15.6A (30S)
• BMS Discharge Voltage Cut-Off: 40V
• Recommended Low Voltage Disconnect: 48.0V
• BMS Reconnect Voltage: 41.6V
• Discharge Temp Range: -4°F to 149°F (-20°C to 65°C)

🔌 Charge Specifications

• Recommended Charge Current: 5 – 52A
• Max Input Current: 350A
• Charge Current Cut-Off: 375A
• BMS Charge Voltage Cut-Off: 58.5V
• Reconnect Voltage: <58.5V
• Charging Temp Range: 34°F to 140°F (0°C to 60°C)

📐 Mechanical Specifications

• Dimensions (L x W x H): 12.8" x 12.01" x 10.42"
• Weight: 100 lbs
• Terminal Type: M8*1.5*25mm
• Cell Configuration: 1P16S
• Case Material: Powder Coated Steel
• Enclosure Protection: IP66 Standard
• Cell Chemistry: Grade A Prismatic LiFePO4

📡 Communication

• Bluetooth: Included receiver for smartphone monitoring
• CAN: CAN connection to communicate with Evolution Golf Carts with Factory Lithium and Factory Touch Screen

✅ 12-Year Transferable Warranty — Backed by Bolt Energy USA. Warranty transfers with the cart, adding resale value to your investment.
