Bolt Energy 74V 105Ah Lithium Battery Pro Kit for Navitas Chassis – 12-Year Warranty

The Bolt Energy 74V 105Ah Lithium Pro Kit is the most complete lithium upgrade available for your Navitas Chassis electric vehicle. Engineered for serious operators and professional installers, this kit delivers 7,728Wh of clean LiFePO4 power with everything you need for a flawless installation — including a 400A solenoid, premium 2AWG cables, mounting hardware, and a waterproof charger. Backed by an industry-leading 12-year warranty.

Expect 50% more range, 70% less weight, and zero maintenance compared to lead-acid. Full voltage delivery until depleted means no power sag on hills or at the end of a long day.

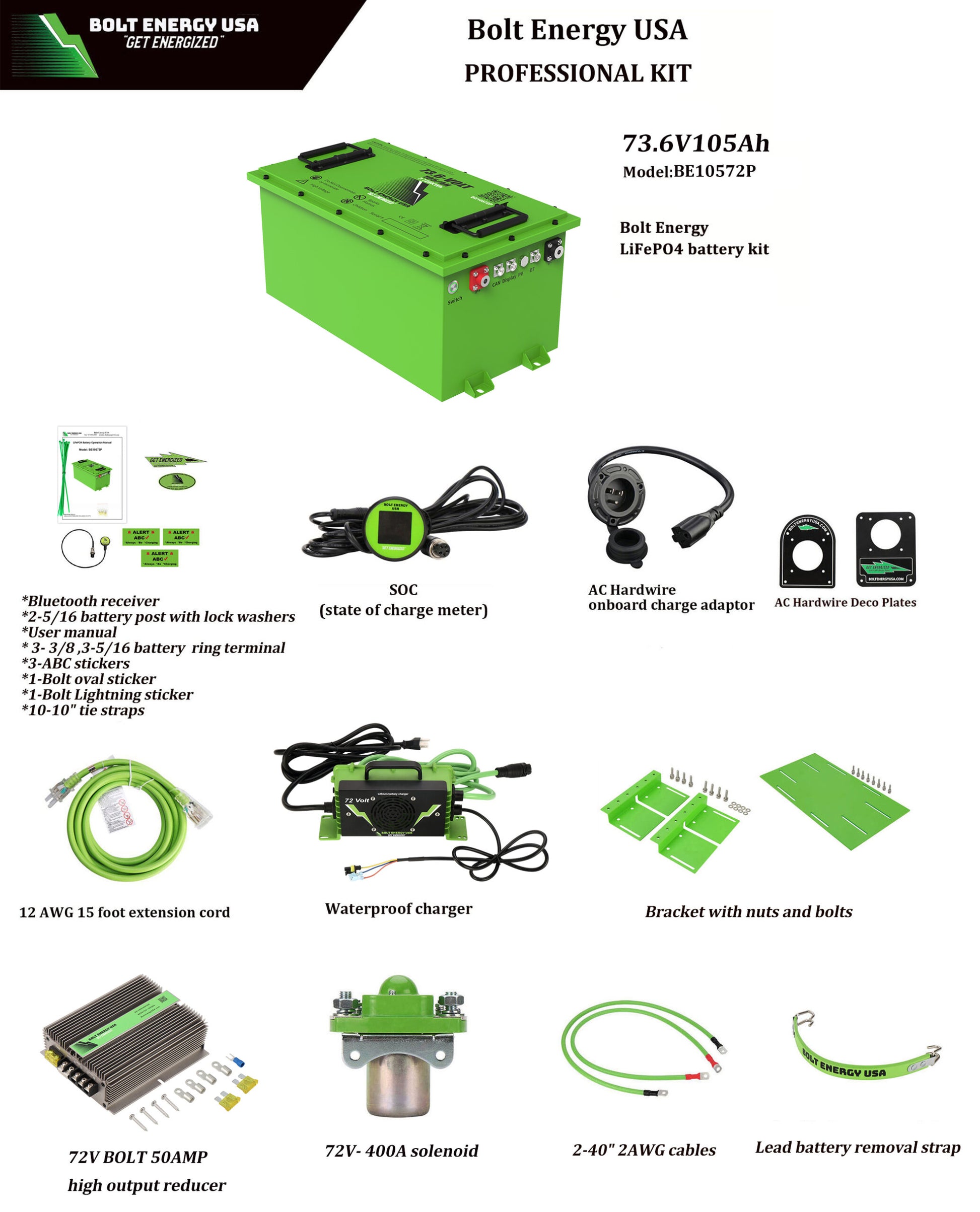

What’s Included:

Core Battery System:

• 73.6V 105Ah LiFePO4 Lithium Battery — 7,728Wh
• Waterproof high-speed charger (3–4 hour charge time)
• Bluetooth receiver — monitor battery health from your smartphone
• Smart SOC meter — precise state-of-charge display
• 12-year warranty

Pro Kit Installation Components:

• 400A heavy-duty solenoid
• Two 40" 2AWG premium installation cables
• 30-amp reducer for optimal charging control
• Lead battery removal strap
• Mounting brackets, nuts & bolts
• Six 3/8" battery ring terminal connectors
• Ten 10" tie straps for clean cable management
• AC hardwire port with DECO cover plates
• 15ft lighted extension cord
• Owner’s manual & Bolt stickers

Technical Specifications:

• Nominal Voltage: 73.6V | Working Range: 62–83.95V
• Capacity: 105Ah | Energy: 7,728Wh | Efficiency: 99%
• Max Continuous Discharge: 250A | Peak: 520A (30s)
• Charging Range: 5–52A recommended | Max Input: 350A

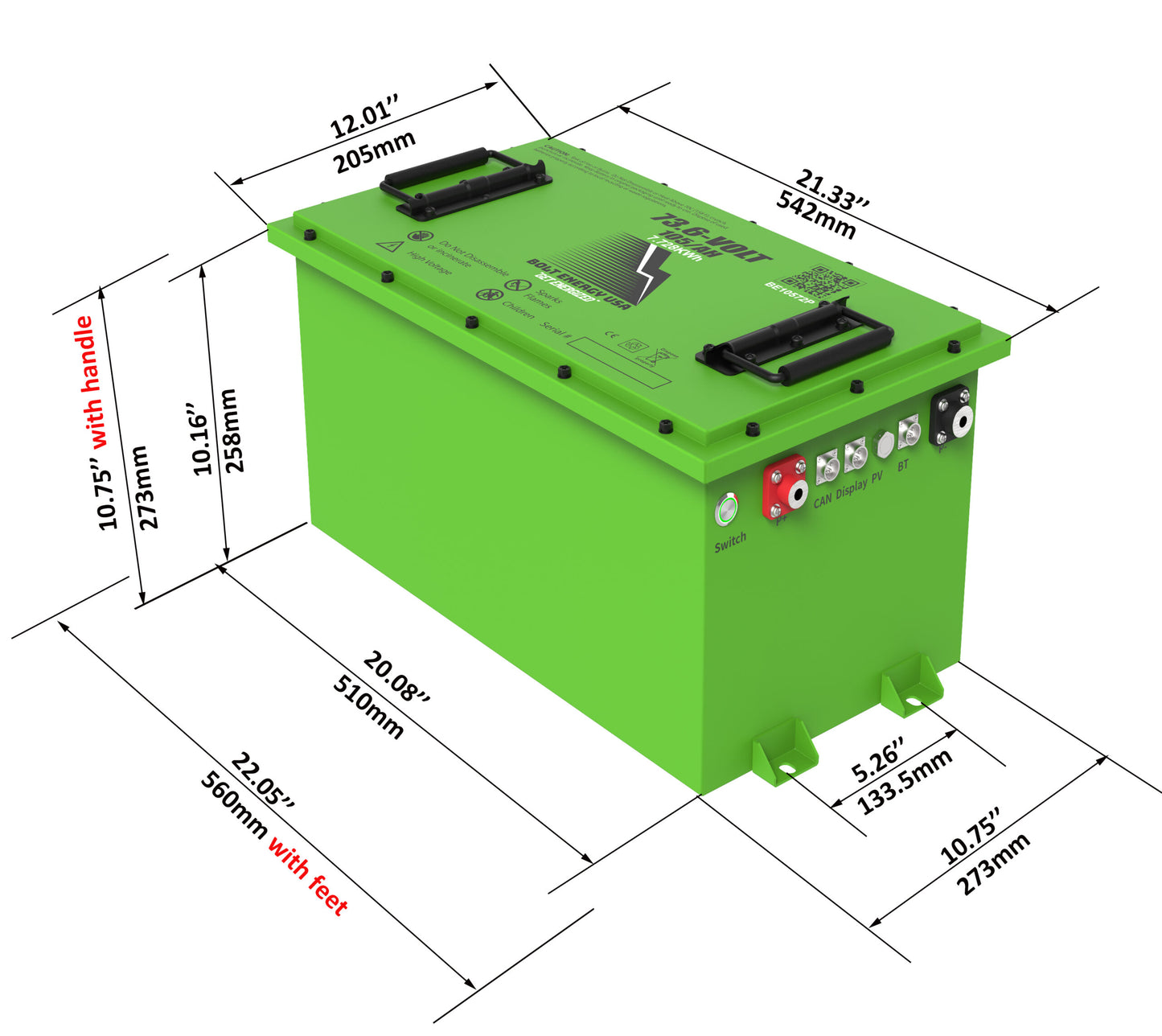

• Dimensions: 20.08" x 10.75" x 10.39" | Weight: 137.26 lbs
• IP66 Waterproof | LiFePO4 Chemistry | 3,000–5,000 cycle life
• Operating Temp: -4°F to 149°F | Charging Temp: 34–140°F

Performance Benefits:

• 50% more range vs. lead-acid on a single charge
• 70% weight reduction — better acceleration and hill climbing
• Zero voltage sag — consistent power from full to empty
• Zero maintenance — no watering, no corrosion
• 3–4 hour charge time vs. 8–10 hours for lead-acid
• 10–15 year service life (3,000–5,000 cycles)

Compatibility:

Designed for Navitas Chassis electric vehicles. Verify your vehicle’s voltage and platform before ordering. Available in Heated and Non-Heated variants.

Professional installation recommended for warranty compliance. Installation time: 2–4 hours for experienced DIYers.
