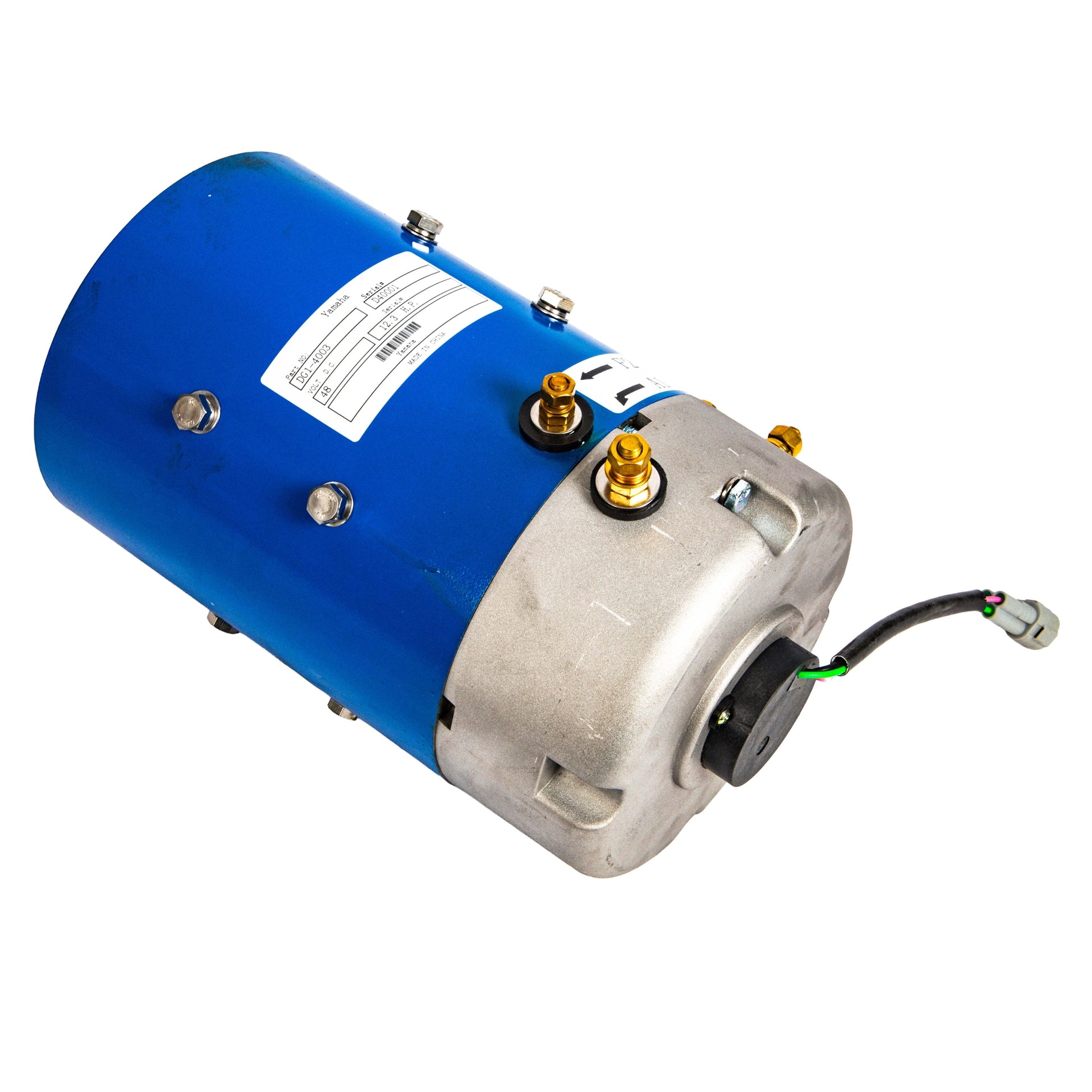

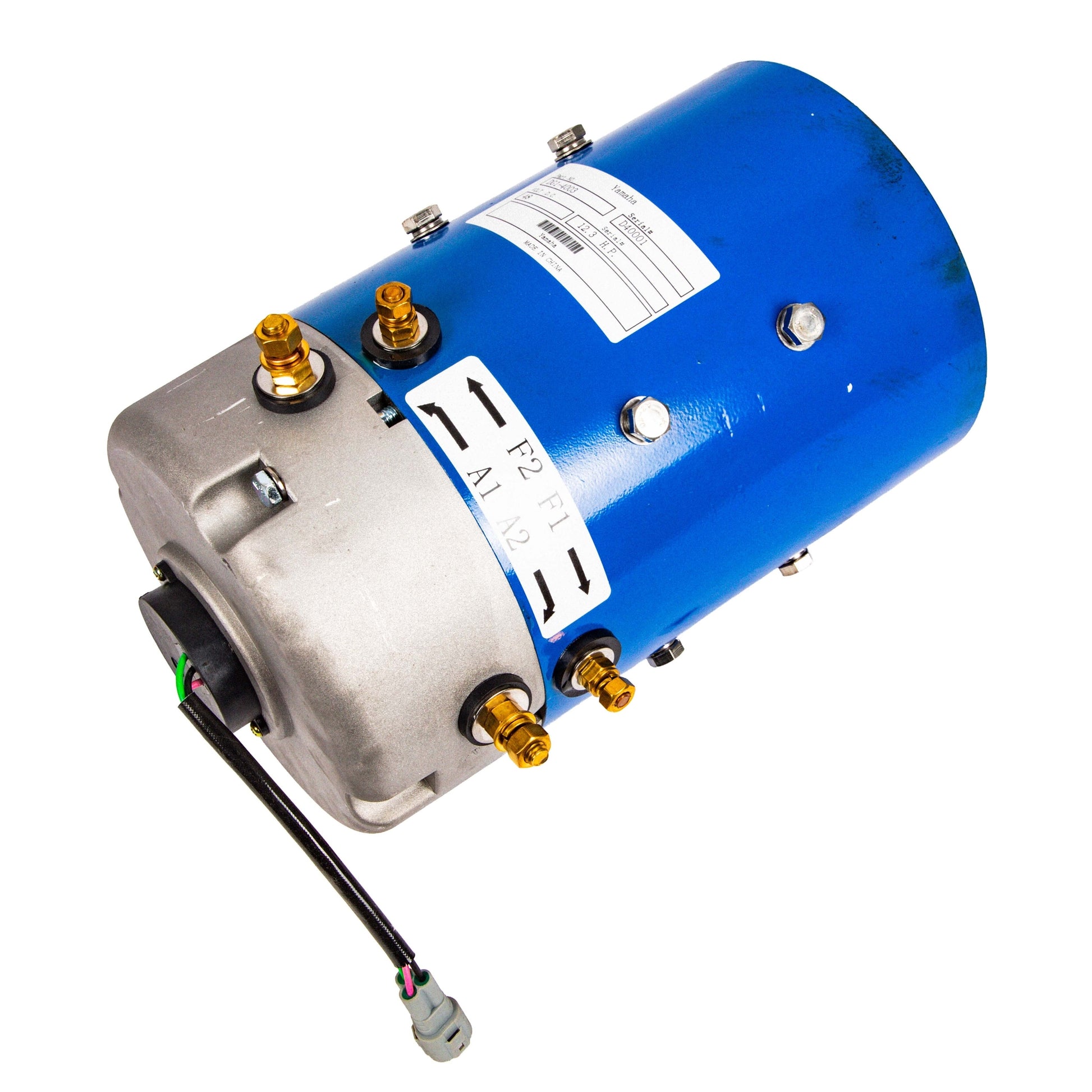

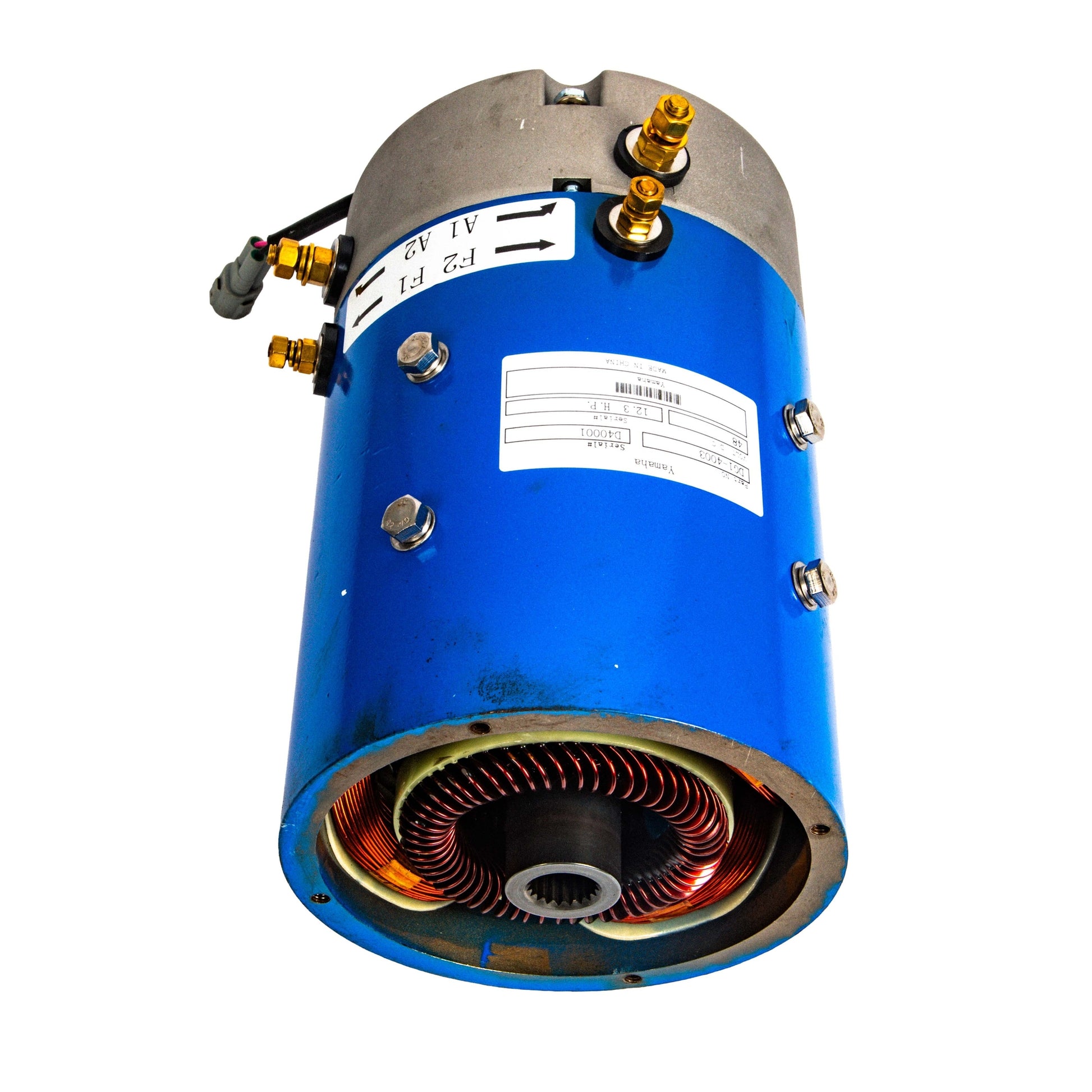

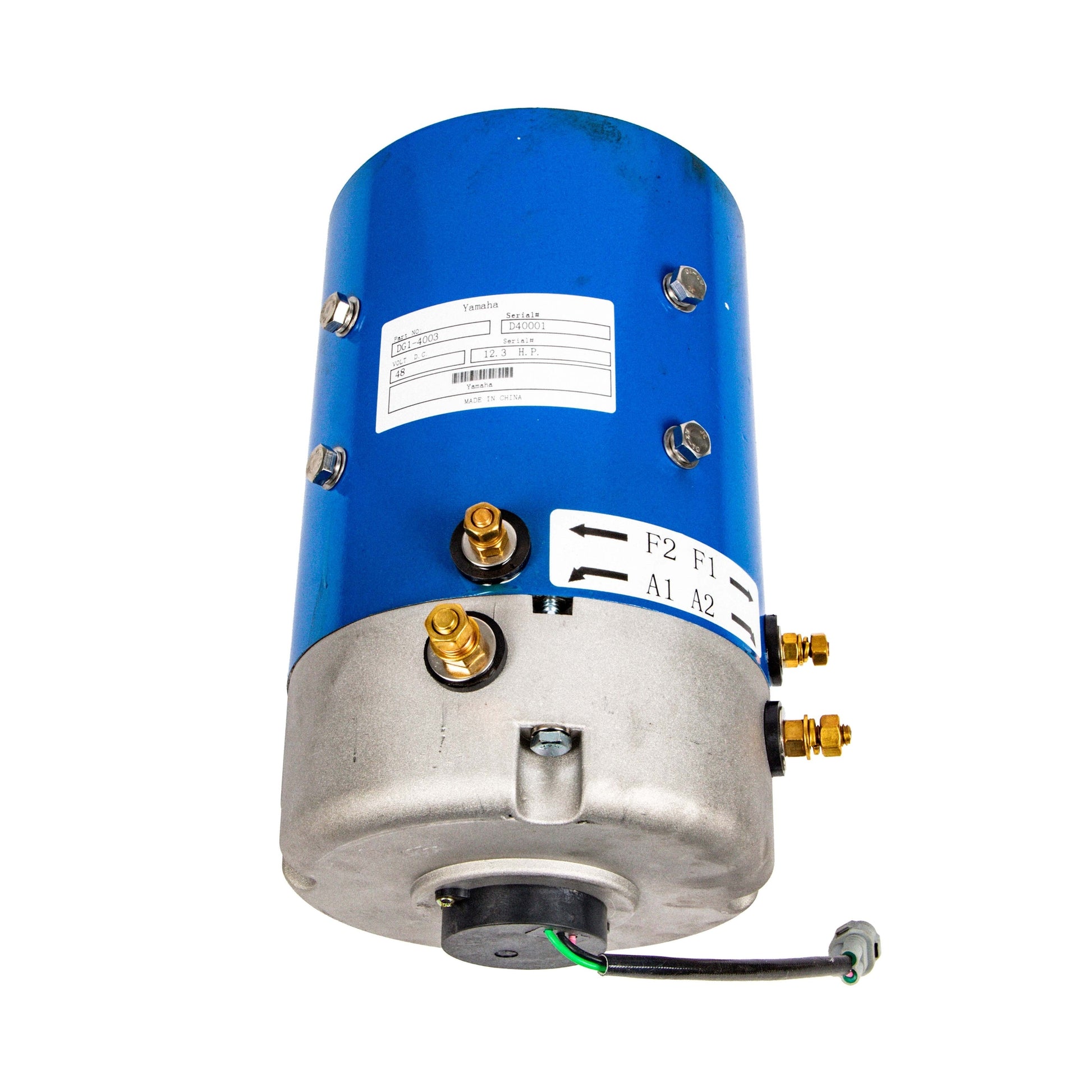

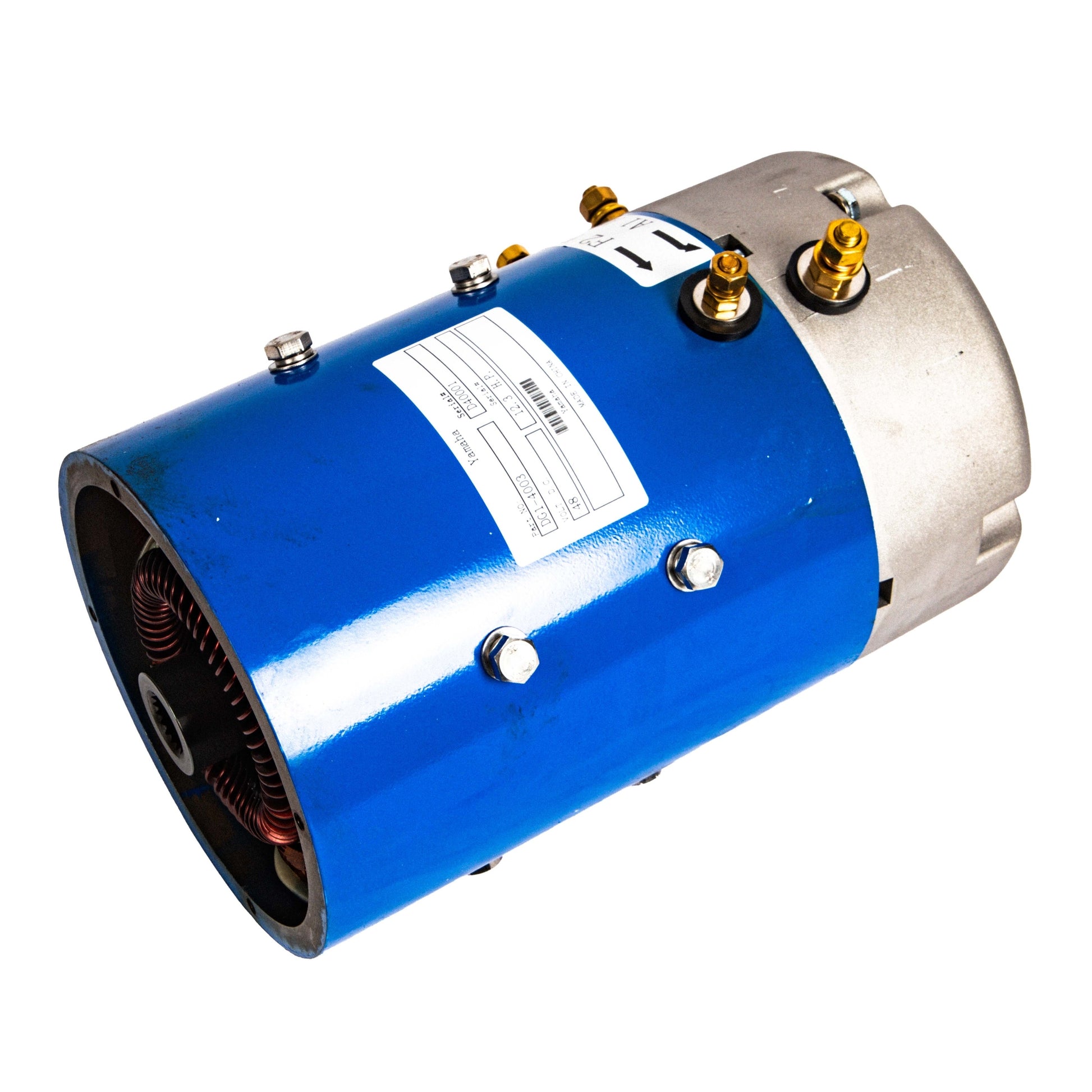

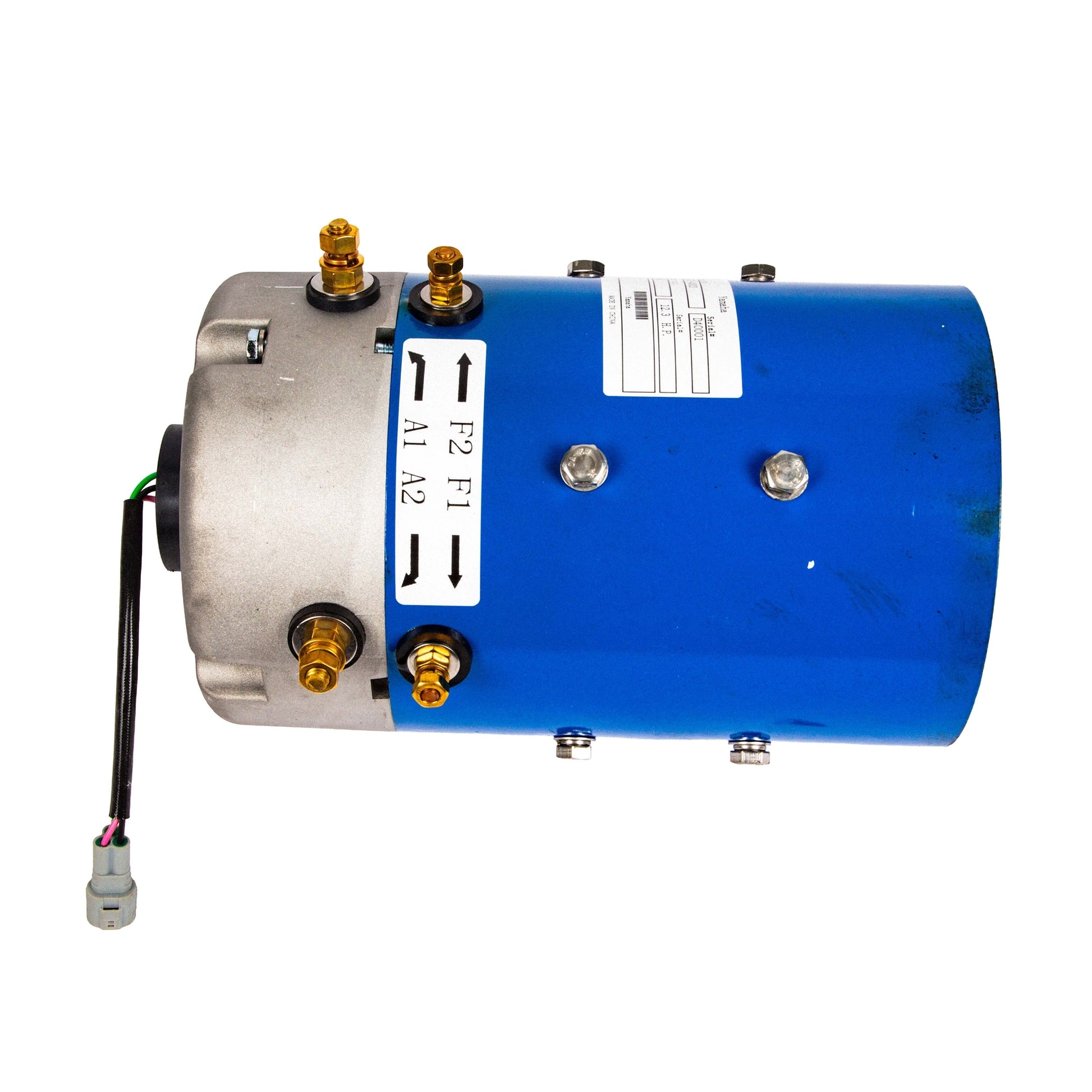

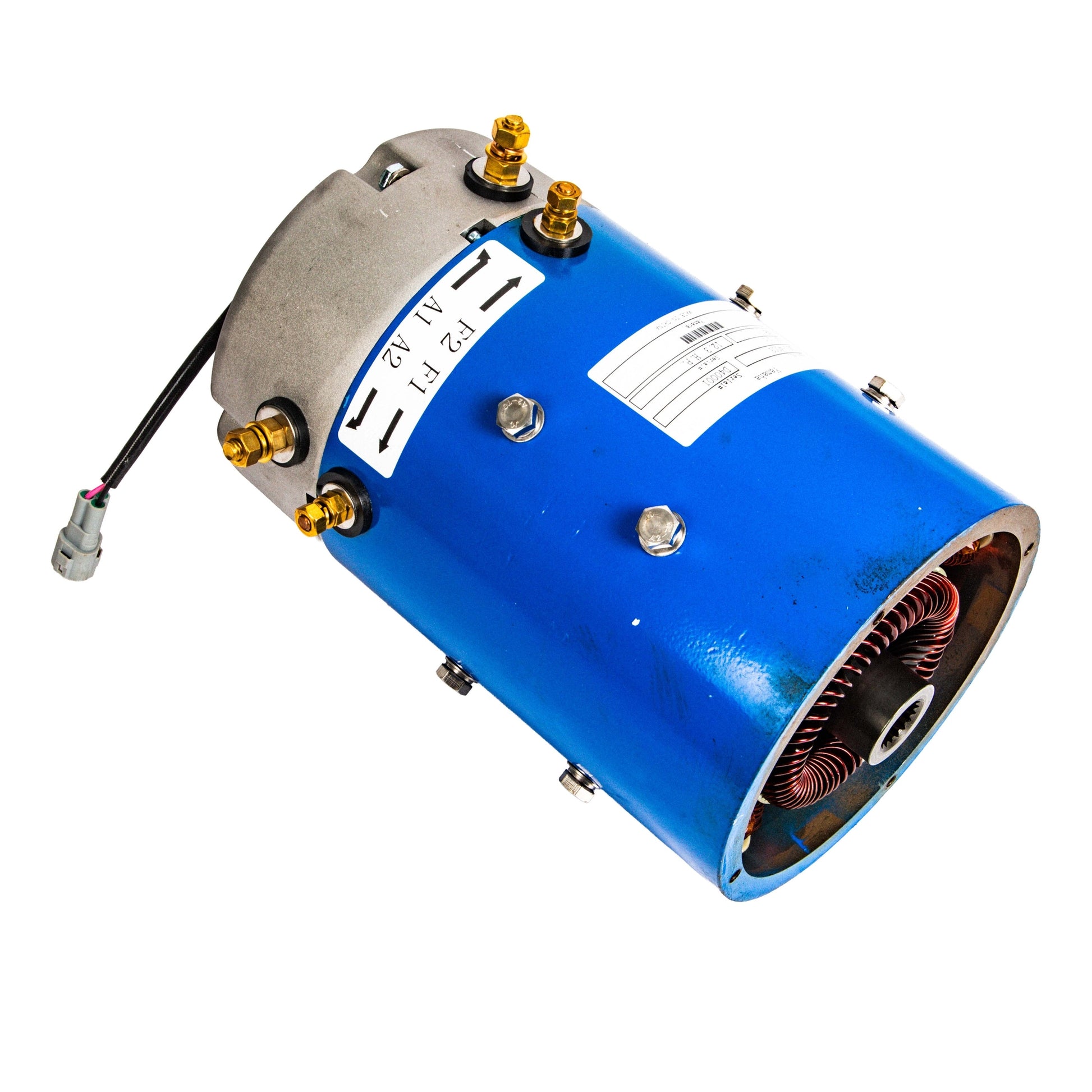

Reliance Yamaha G29/Drive and Drive2 48V 19 Spline High Torque Motor

SKU: 25-518 — Reliance 48 volt 19-spline high torque motor built for the Yamaha G29/Drive and Drive2. A direct factory replacement engineered for maximum pulling power and hill-climbing performance.

Features:

• For Yamaha G29/Drive and Drive2 48 volt high torque motor (not a replacement for A/C motors)

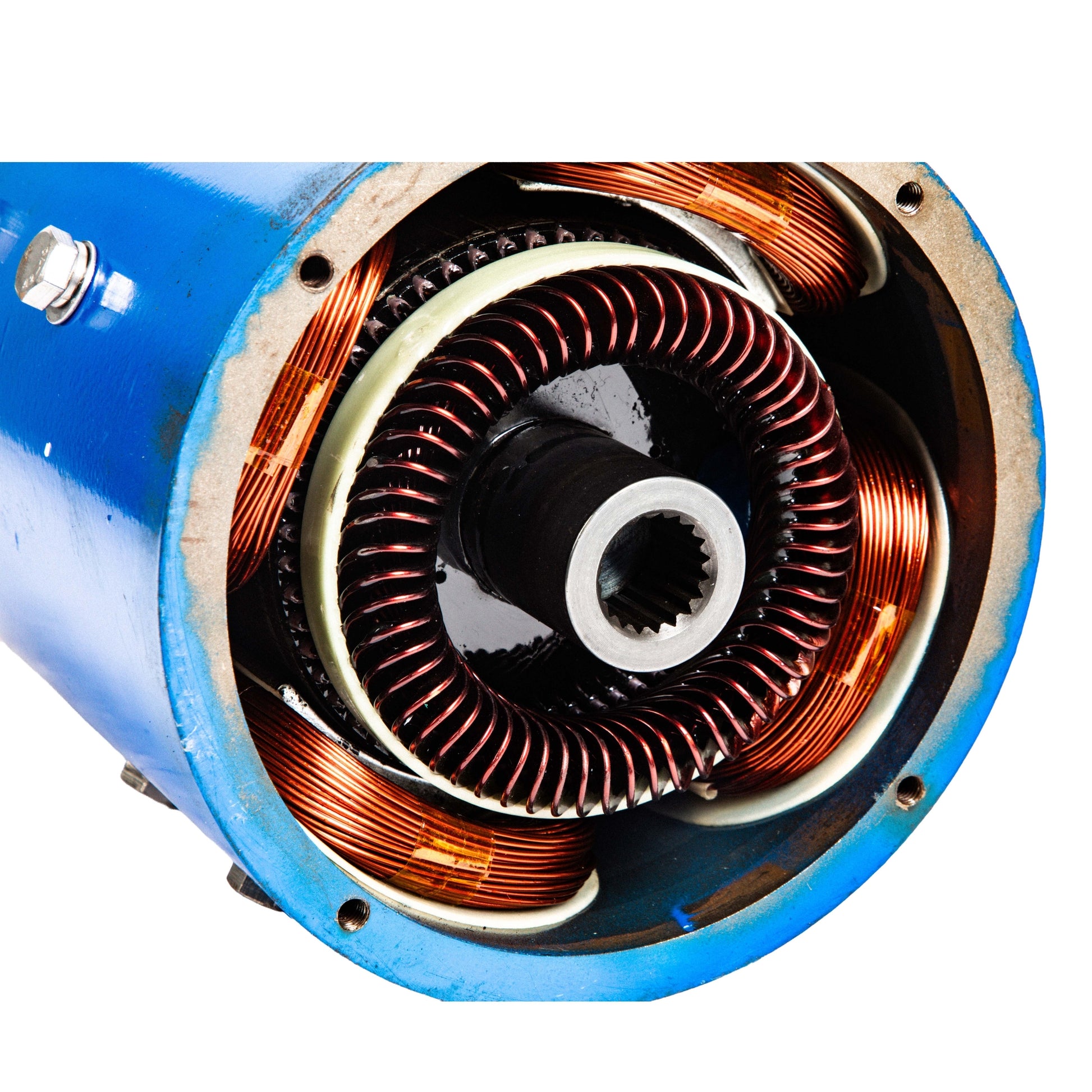

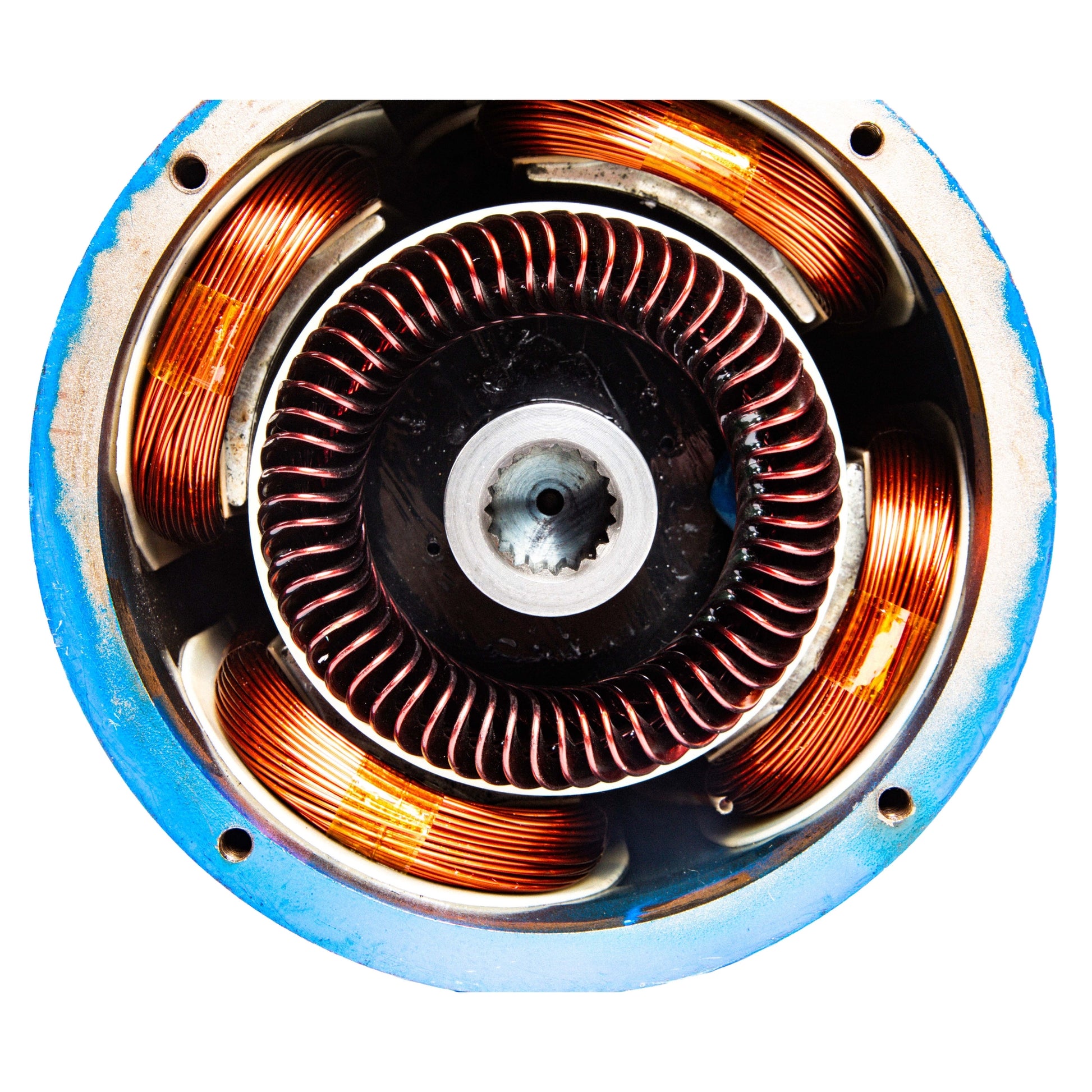

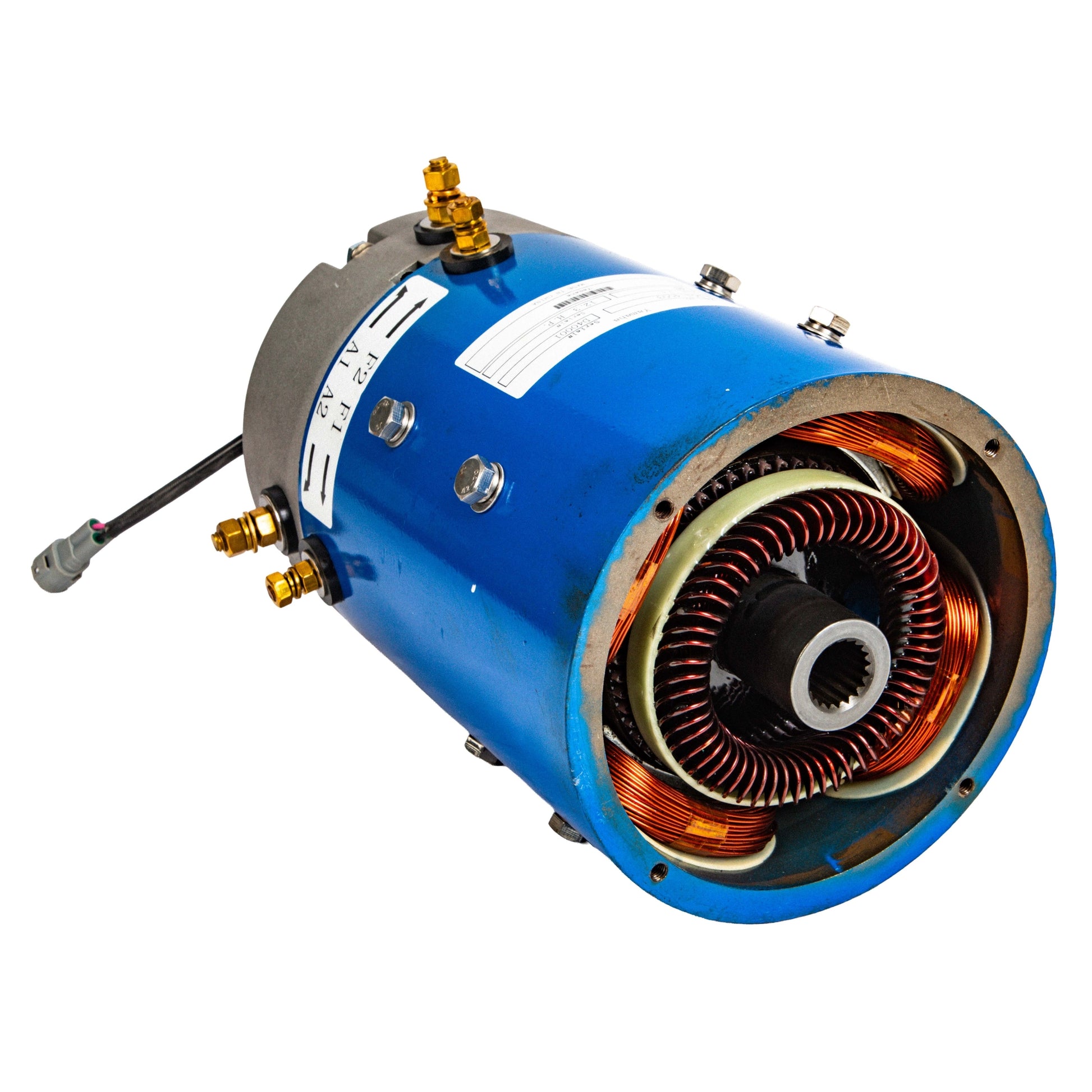

• 19-tooth female spline

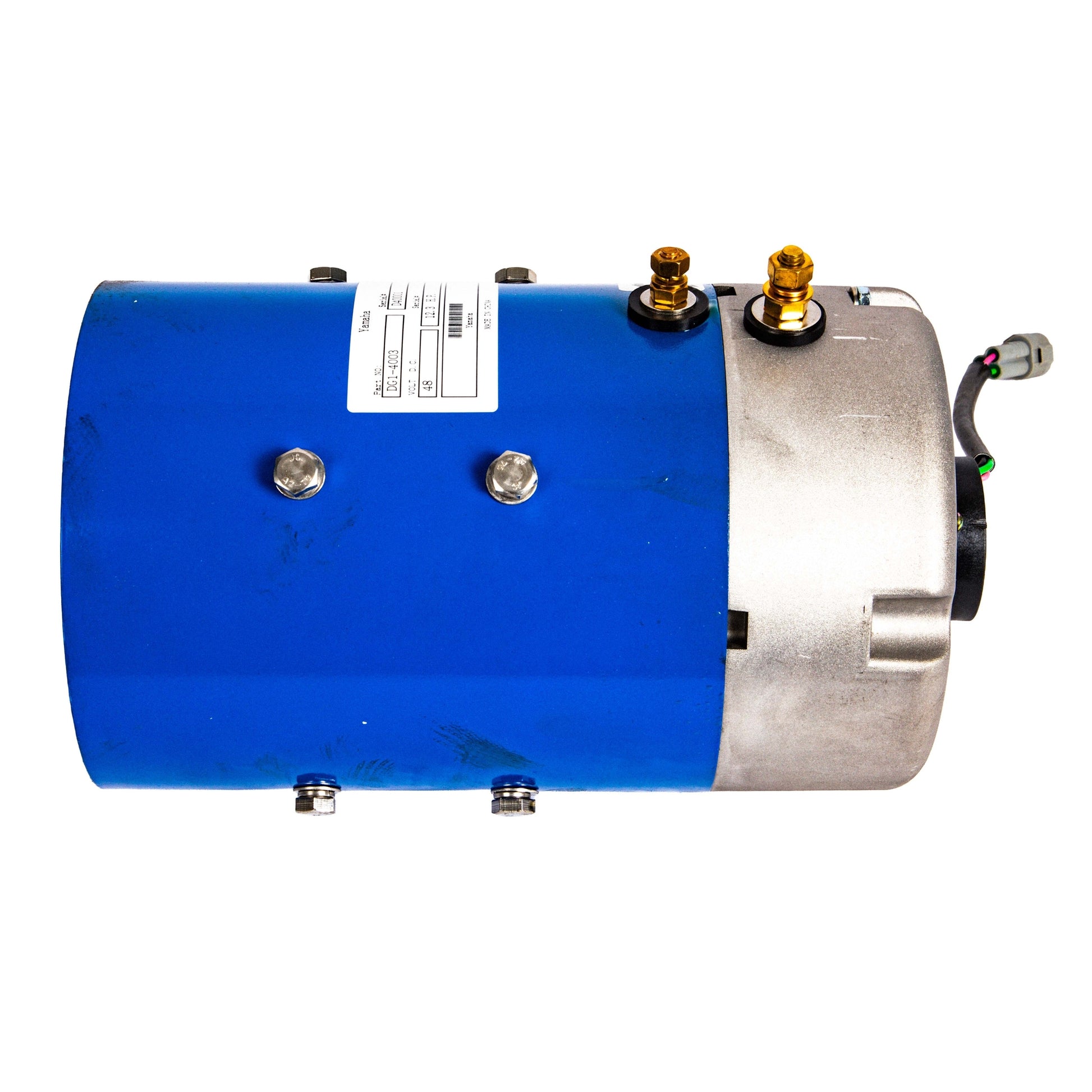

• 12-inch overall length (verify clearance before installation)
• Direct factory motor replacement
• Navitas controller compatible
• Includes a 1-year warranty

NOTE: Performance gains require an upgraded controller and properly maintained mechanical components. High torque applications can damage stock controllers — a Navitas controller upgrade is strongly recommended.

With Upgraded Controller:

• Speeds up to 18 mph
• 12.3 HP peak
• Up to 70% increase in torque

Compatible Controllers:

• Navitas 440 Amp Controller: Navitas TSX 3.0 440AMP 36-48V Bluetooth Golf Cart Controller
• Navitas 600 Amp Controller: Navitas 600 amp DC Golf Cart Controller w/ Bluetooth

New Motor Break-In Instructions:

This motor is engineered to work with stock factory controllers and aftermarket controllers programmed with a custom, motor-specific field map. Using an incorrectly programmed controller may result in motor damage and will void all warranties.

Break-In Procedure:

• Step 1 – Initial Drive: Drive the vehicle for 8–10 miles at varying speeds, accelerating gently throughout.
• Step 2 – Temperature Monitoring: Drive on a level surface (pavement or asphalt). Gradually accelerate and maintain full speed for 5–10 minutes, then stop and check motor temperature.
  • During the first 30 minutes, check temperature every 10 minutes by touching the aluminum end bell (silver component near the center of the motor).
  • If the end bell is too hot to touch, stop and allow the motor to cool before continuing.
  • If you can hold your hand on it for 5+ seconds, it is safe to continue for a few more miles. Repeat until the 8–10 mile break-in is complete.
• CAUTION: Avoid touching any exposed electrical connections while power is on.
• NOTE: Speed and torque will improve as brushes seat against the commutator. A cooler-running motor is a more efficient motor.
