Bolt Energy 74V 105Ah Lithium Battery Bundle for Navitas Chassis – 12-Year Warranty

Upgrade your Navitas Chassis with the Bolt Energy 74V 105Ah Lithium Battery Bundle — a complete, ready-to-install system delivering 7,728Wh of clean LiFePO4 power. Expect 50% more range, 70% less weight, and zero maintenance compared to lead-acid. Full voltage delivery from full to empty means no power sag on hills or at the end of a long day. Backed by an industry-leading 12-year warranty.

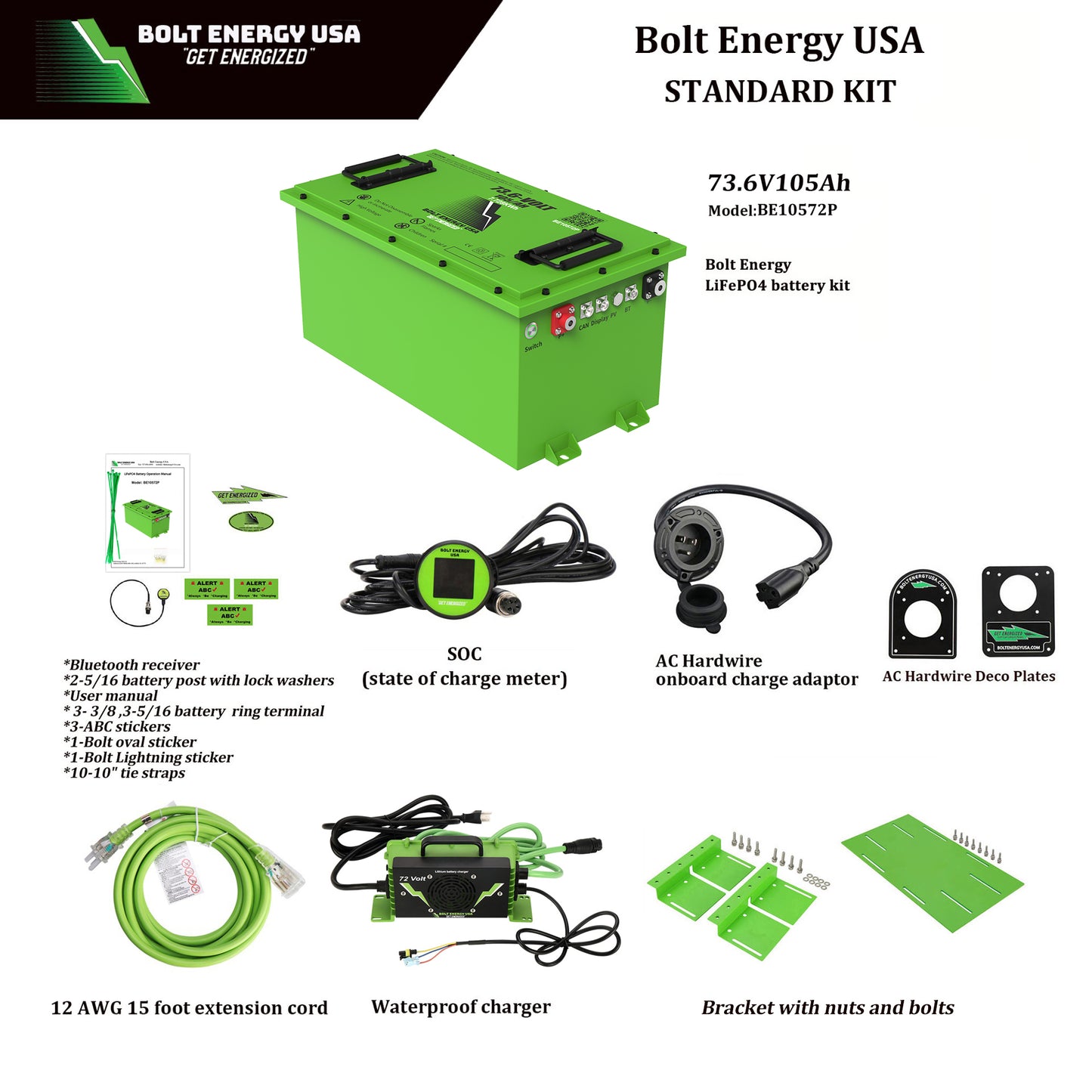

What’s Included:

• 73.6V 105Ah LiFePO4 Lithium Battery — 7,728Wh
• Waterproof high-speed charger (3–4 hour charge time)
• Bluetooth receiver — monitor battery health from your smartphone
• Smart SOC meter — precise state-of-charge display
• AC hardwire port with DECO cover plates
• Complete installation hardware (terminals, tie straps, mounting hardware)
• 15ft lighted extension cord
• Owner’s manual & Bolt stickers
• 12-year warranty

Technical Specifications:

• Nominal Voltage: 73.6V | Working Range: 62–83.95V
• Capacity: 105Ah | Energy: 7,728Wh | Efficiency: 99%
• Max Continuous Discharge: 250A | Peak: 520A (30s)
• Charging Range: 5–52A recommended | Max Input: 350A

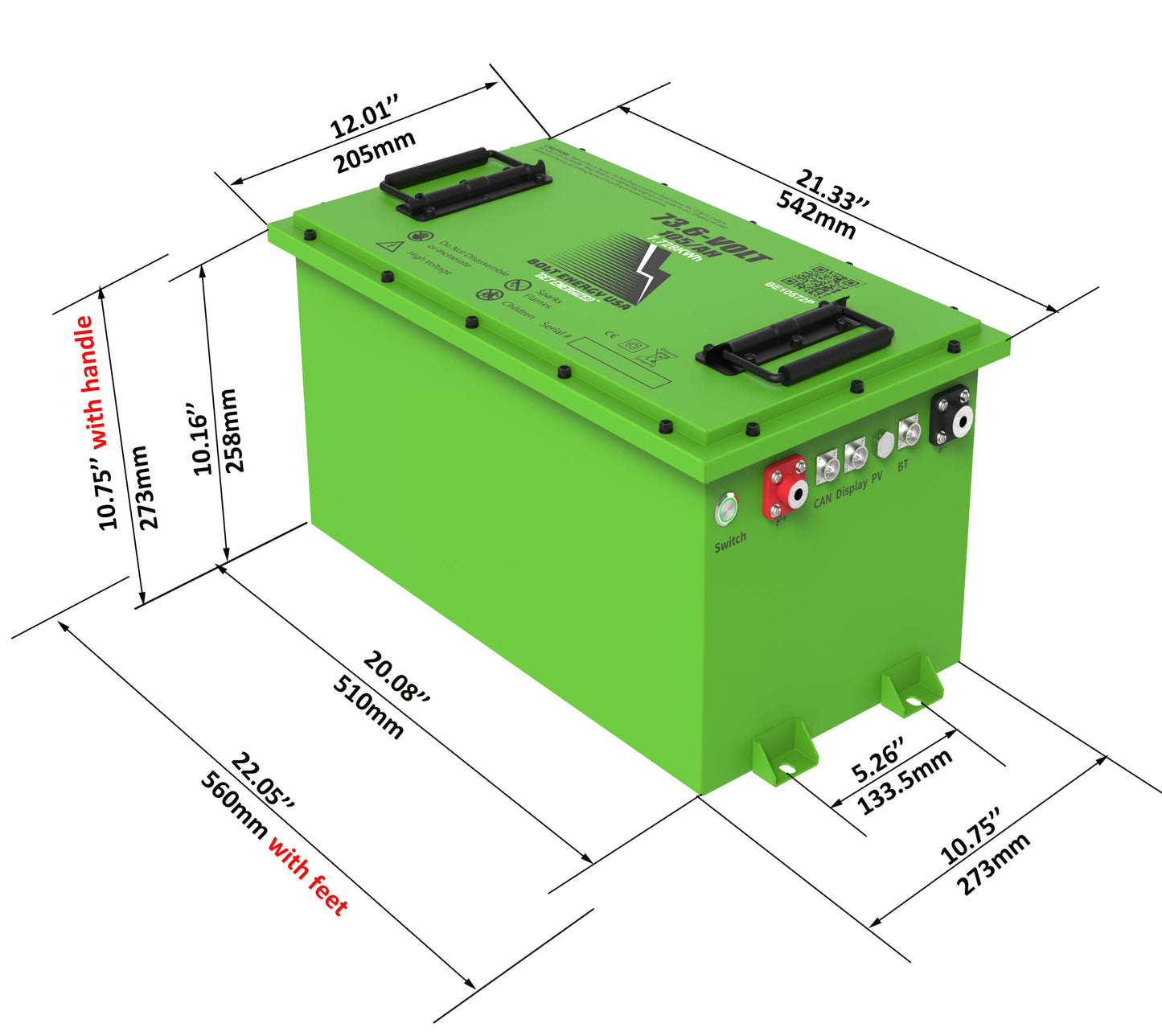

• Dimensions: 20.08" x 10.75" x 10.39" | Weight: 137.26 lbs
• IP66 Waterproof | LiFePO4 Chemistry | 3,000–5,000 cycle life
• Operating Temp: -4°F to 149°F | Charging Temp: 34–140°F

Performance Benefits:

• 50% more range vs. lead-acid on a single charge
• 70% weight reduction — better acceleration and hill climbing
• Zero voltage sag — consistent power from full to empty
• Zero maintenance — no watering, no corrosion
• 3–4 hour charge time vs. 8–10 hours for lead-acid
• 10–15 year service life (3,000–5,000 cycles)
• IP66 waterproof enclosure — built for all-weather use

Compatibility:

Designed for Navitas Chassis electric vehicles. Verify your vehicle’s voltage and platform before ordering. Available in Heated and Non-Heated variants.

Need the full professional install kit? Check out the Bolt Energy Pro Kit which adds a 400A solenoid, premium 2AWG cables, removal strap, and more.

Professional installation recommended for warranty compliance. Installation time: 2–3 hours for experienced DIYers.
